FUSION Stick FS16 Z – Product Data

• Manual Files: files/products/fusion-stick-fs16-z-product-data/GLP_Fusion_FS16Z_User_Manual_EN_Rev_20240625-01.pdf
• DMX Charts: files/products/fusion-stick-fs16-z-product-data/GLP_Fusion_FS16Z_DMX_Channel_Index_EN_Rev_20240625-01.pdf
• Photometric Files: files/products/fusion-stick-fs16-z-product-data/GLP_FUSION_Stick_FS16_Z_Photometrics_Rev20210715-1.zip
• Fixture Lib. Files: files/products/fusion-stick-fs16-z-product-data/GLP_Fusion_Stick_FS16Z_MA2_Rev_20240412-1.zip
• CAD Files: files/products/fusion-stick-fs16-z-product-data/GLP_FUSION_FS16Z_CAD_Rev_20241111-1.zip
• Info Material Files: files/products/fusion-stick-fs16-z-product-data/GLP_FUSION_Stick_FS16_Z_Cut_Sheet.pdffiles/products/fusion-stick-fs16-z-product-data/GLP_FUSION_Stick_FS16_Z_Datasheet.pdf
• Header Image:
• Product Picture Gallery:

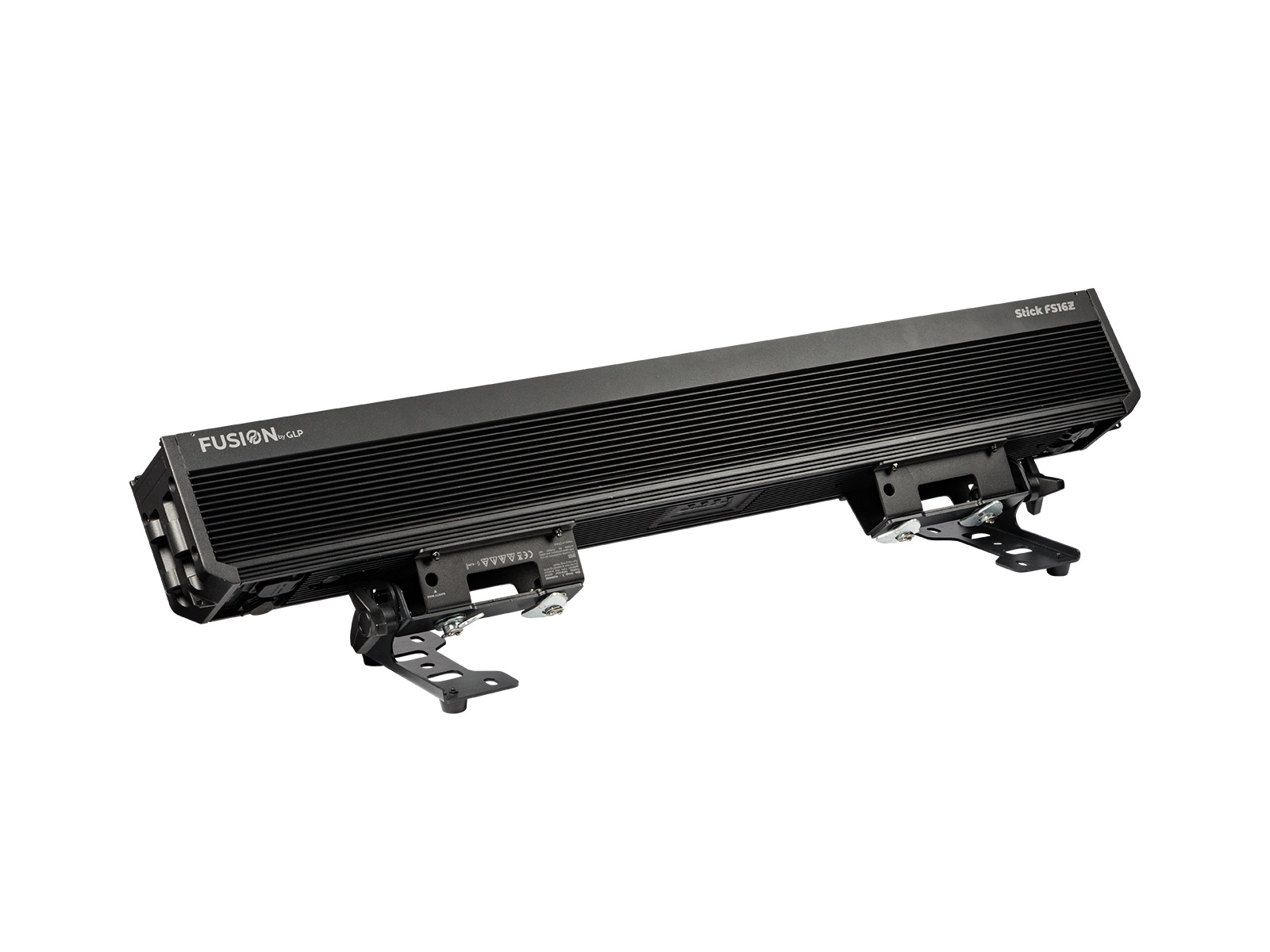

  FUSION Stick FS16 Z



  FUSION Stick FS16 Z



  FUSION Stick FS16 Z



  FUSION Stick FS16 Z

• Tender Text Files: files/products/fusion-stick-fs16-z-product-data/GLP_FUSION_Stick_FS16_Z_tender-text-GER.zip
• Firmware: files/products/fusion-stick-fs16-z-product-data/FUSION_FS16Z_Firmware_V1012_Rev20240425-1.zip
• Product info:
  • Long product text (editor):

    The FUSION Stick FS16 Z has a motorized zoom between 10° and 41° beam angle. It is still the same size and dimensions as the FUSION Stick FS20, so all diffusors, including asymmetrical options, and accessories are available to use.

    The Halo Ring is another innovation implemented to increase pixel visibility in TV applications. In all camera angles the single pixels are visible at any zoom position due to the ring around the front lens and still create stunning narrow beams.

    The FUSION Stick FS16 Z features an IP rating of 65, allowing for full outdoor use regardless of poor weather conditions. To that end the Stick features a fanless design, which not only ensures the IP65 rating, but also enables silent operation for sound sensitive environments such as theaters or television.

    The direct vertical hanging and standing are one of the key features to create stunning effects with less rigging effort.

    No matter the application, the FUSION Stick FS16 Z is the right choice.

    , Short product description: IP65, fanless, 8 to 40 degrees Zoom, Halo Ring for improved pixel visibility
• Zulassungen & Klassifizierungen:
  • Daten enthalten?: ja , Risk Group EN 62471: Risk Group 2
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: austauschbarer Frontscreen | IR Sensor für Fernbedienung | vertikale Anbringung, Gehäusefarbe: schwarz , Gehäusematerial: Aluminium , Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: 4, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20) , DMX Channels: 4 | 14 | 33 | 79, High-Res Channels: Dimmer, Weitere Steuerungsoptionen: 3 Layer Pattern-FX-Engine, Einstellung und Adressierung: 4 Button Menu Navigation, DMX, RDM, IR Sensor für Fernbedienung , Geräte-Update: DMX Link via Updater
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe: 90 mm / 3.5 in, Höhe: 236 mm / 9.3 in, Gewicht (netto): 13 kg / 18.66 lbs, Breite: 1.023 mm / 40.6 in
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 450 W
• Lichtquelle:
  • Daten enthalten?: ja , CRI: 70+, CT: 6.000 K, Anzahl: 16, Lebensdauer: 20.000 h , Leistung: 20 W, TLCI: 42, TM-30-15: 97 / 62, Typ: RGBW
• Installation:
  • Daten enthalten?: ja , Standort: outdoor , Befestigung: 2 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel , Ausrichtung: beliebig , Mindestabstand zu entzündlichen Materialien: 0,5 m , Mindestabstand zu beleuchteten Oberflächen: 0,5 m
• Optisches System:
  • Daten enthalten?: ja , max. Zoom: 41°, min. Zoom: 10°, Licht-Output: bis zu 5.890 lm, Zoomverhältnis: 1:4
• Light Source:
  • CRI: 70+, CT: 6,000 K, Count: 16, Lifetime: 20,000 h , Power: 20 W, TLCI: 42, TM-30-15: 97 / 62, Type: RGBW
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Kühlung: lüfterlose Konvektionskühlung , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 1.535 BTU/hr, max. Umgebungstemperatur: 40 °C / 104 °F, min. Umgebungstemperatur: -10 °C / 14 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik XLR 5-Pin In/Out
• Construction:
  • Construction features: Changeable Front screen | IR Sensor for Remote Control | direct vertical hanging, Housing color: Black , Housing material: aluminum , Protection Rating: IP65
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 450 W
• Installation:
  • Location: Outdoor , Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable , Orientation: any , min. distance to combustible materials: 0.5 m , min. distance to illuminated surfaces: 0.5 m
• Dimensions & Weight:
  • Depth: 90 mm / 3.5 in, Height: 236 mm / 9.3 in, Weight (netto): 13 kg / 18.66 lbs, Width: 1,023 mm / 40.6 in
• Optical System:
  • max. Zoom: 41°, min. Zoom: 10°, Total Output: up to 5,890 lm, Zoom ratio: 1:4
• Control & Programming:
  • Control Modes: 4, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20) , DMX Channels: 4 | 14 | 33 | 79, Other control options: 3 Layer Pattern-FX-Engine, Setting and addressing: 4 Button Menu Navigation, DMX, RDM, IR Sensor for Remote Control , Software update: DMX Link via Updater
• Thermal Specifications:
  • Cooling Type: convection , Overheating protection: automatic , Total heat dissipation: 1,535 BTU/hr, max. ambient temperature: 40 °C / 104 °F, min. ambient temperature: -10 °C / 14 °F
• Approvals & Classifications:
  • Risk Group EN 62471: Risk Group 2
