Written by Elisabeth Riemesch on . Posted in PD Installation/Industrial.

D3Prog – Product Data

  • Header Image: D3Prog
  • Product Picture Gallery:
    D3Prog
  • Firmware: files/products/d3prog-product-data/GLP_D3Prog_Firmware_Rev20220622-1.zip
  • Product info:
    • Long product text (editor):

      The D3Prog is a service tool for firmware updates of GLP devices and should not be missing in any technician's bag.

      Via USB or Sub-D 9pin, different firmware versions can be stored on different memory locations via PC, which can then be conveniently loaded onto the fixture via DMX Link (RS458/DMX) or AVR/ISP at the touch of a button.

      To bypass unnecessarily required XLR adapters, the D3Prog is equipped with both an XLR 5-pin female and an XLR 3-pin female connector. Multiple fixtures in a DMX line can also be brought up to speed simultaneously, saving an enormous amount of time.

      For maximum service convenience, the D3prog is battery-powered and can therefore be used independently of mains voltage.

      , Short product description: The D3Prog is a service tool for firmware updates of GLP devices and should not be missing in any technician's bag
  • Software Updater:
    • Daten enthalten?: ja , Batterietyp: 2x Mignon 1,2 V , Anschlüsse: USB Type B, Sub-D Buchse 9-Pin male, XLR 5-Pin female (DMX Link), XLR 3-Pin female (DMX Link) , Steuerung: 2.24" LCD Display, 5 Tasten , Maße: 43 x 120 x 78 mm / 1.69 x 4.72 x 3.07 in
  • Software Updater:
    • Battery Type: 2x Mignon 1.2 V , Connectors: USB Type B, Sub-D 9-Pin male, XLR 5-Pin female (DMX Link), XLR 3-Pin female (DMX Link) , Control: 2.24" LCD Display, 5 buttons , Dimensions: 43 x 120 x 78 mm / 1.69 x 4.72 x 3.07 in
  • Hits: 81

Written by Elisabeth Riemesch on . Posted in PD Installation/Industrial.

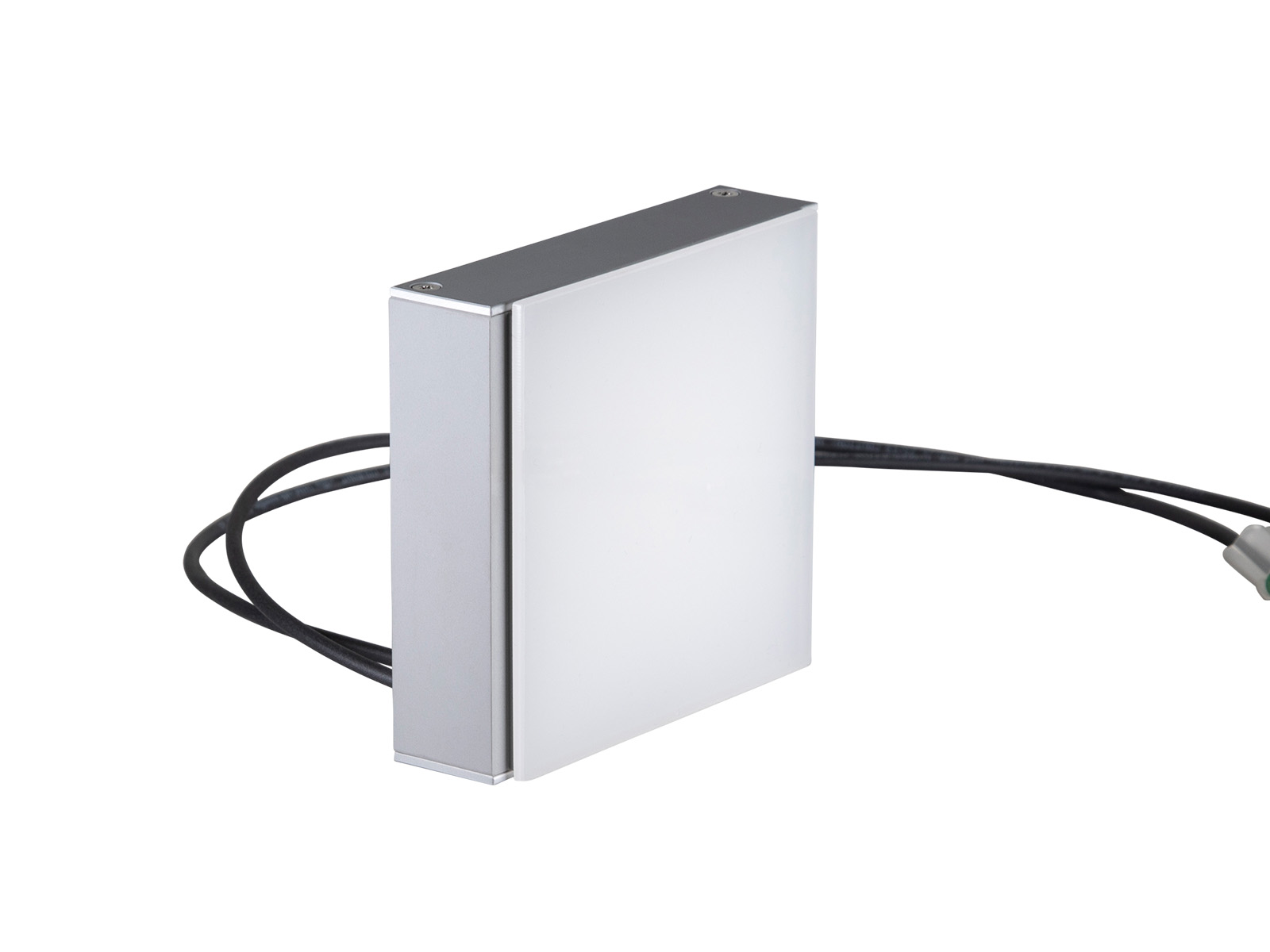

Workplace Luminaire HIQ – Product Data

  • Info Material Files: files/products/workplace-luminaire-hiq-p-product-data/Workplace_Luminaire_HIQ_Overview-EN.pdffiles/products/workplace-luminaire-hiq-p-product-data/Arbeitsfeldleuchte_HIQ_Ubersicht-DE.pdf
  • Header Image: Workplace Luminaire HIQ
  • Product Picture Gallery:
    Workplace Luminaire HIQ
    Workplace Luminaire HIQ P
    Workplace Luminaire HIQ
  • Aufbau:
    • Daten enthalten?: ja , Gehäusematerial: Aluminium eloxiert
  • Abmessung:
    • Daten enthalten?: ja , Lichtaustrittsfläche: S Version: 96 x 96 mm / 3.7 x 3.7 in | P Version: 66 x 66 mm / 2.5 x 2.5 in, Gesamtmaße (B x H x T): S Version: 106 x 96 x 24 mm / 4.1 x 3.7 x 0.9 in | P Version: 76 x 66 x 24 mm / 2.9 x 2.5 x 0.9 in
  • Elektronik:
    • Daten enthalten?: ja , Länge Anschlusskabel: 450 mm, Steckerbelegung: blau (0 V); schwarz (+24 V geschaltet); braun (nicht belegt) , Stecker: Phoenix Contact – SAC-3P-M 8MR gewinkelt
  • Weitere Daten:
    • Daten enthalten?: ja , EEC: A+ , EEI: S Version: SK 1: 0,16 / SK 2: 0,14 / SK 1+2: 0,17 | P Version: SK 1: 0,18 / SK 2: 0,21 / SK 1+2: 0,22, Montageart: M4 Gewinde auf Rückseite , Schutzart: IP 50 , Gewichteter Energieverbrauch: (in kWh/1.000 h) S Version: SK 1: 3,7 / SK 2: 7,4 / SK 1+2: 11,1 | K Version: SK 1: 2,9 / SK 2: 5,9 / SK 1+2: 8,8
  • Lichttechnik:
    • Daten enthalten?: ja , Beam Angle: 116° , CRI: 75, Farbtemperatur: 6.500 K , Anschluss: SK 1 | SK 2 | SK 1+2 , Eingangsspannung: DC 24 V , LED Anzahl: SK 1: 10 | SK 2: 20 | SK 1+2: 30, LED Lebensdauer: > 50.000 h , LED Typ: LED-Modul SMD , Bemessungslichtstrom: S Version: SK 1: 247 lm / SK 2: 700 lm / SK 1+2: 936 lm | P Version: SK 1: 152 lm / SK 2: 284 lm / SK 1+2: 432 lm, Nennleistung: S Version: SK 1: 3,6 W / SK 2: 7,3 W / SK 1+2: 10,9 W | P Version: SK 1: 2,8 W / SK 2: 5,8 W / SK 1+2: 8,6 W
  • Dimensions:
    • Illuminated Surface: S Version: 96 x 96 mm / 3.7 x 3.7 in | P Version: 66 x 66 mm / 2.5 x 2.5 in, Overall Dimensions (W x H x D): S Version: 106 x 96 x 24 mm / 4.1 x 3.7 x 0.9 in | P Version: 76 x 66 x 24 mm / 2.9 x 2.5 x 0.9 in
  • Construction:
    • Housing material: aluminum anodized , Plexiglas panel: milky WH10
  • Electronics:
    • Length connection cable: 450 mm, Pin assignment: blue (0 V); black (+24 V switched); brown (not assigned) , Plug: Phoenix Contact – SAC-3P-M 8MR angled
  • Light Tech:
    • Beam Angle: 116° , CRI: 75, Color Temperature: 6,500 K , Connection: SK 1 | SK 2 | SK 1+2 , Input Voltage: DC 24 V , LED Count: SK 1: 10 | SK 2: 20 | SK 1+2: 30, LED Lifetime: > 50,000 h , LED Type: LED-Module SMD , Luminous Flux: S Version: SK 1: 247 lm / SK 2: 700 lm / SK 1+2: 936 lm | P Version: SK 1: 152 lm / SK 2: 284 lm / SK 1+2: 432 lm, Rated Power: S Version: SK 1: 3.6 W / SK 2: 7.3 W / SK 1+2: 10.9 W | P Version: SK 1: 2.8 W / SK 2: 5.8 W / SK 1+2: 8.6 W
  • Further Data:
    • EEC: A+ , EEI: S Version: SK 1: 0.16 / SK 2: 0.14 / SK 1+2: 0.17 | P Version: SK 1: 0.18 / SK 2: 0.21 / SK 1+2: 0.22, Mounting: M4 thread on back , Protection Rating: IP 50 , Weighted Energy Consumption: (in kWh/1.000 h) S Version: SK 1: 3.7 / SK 2: 7.4 / SK 1+2: 11.1 | K Version: SK 1: 2.9 / SK 2: 5.9 / SK 1+2: 8.8
  • Hits: 40

Written by Elisabeth Riemesch on . Posted in PD Installation/Industrial.

AIR DOME 400 – Product Data

  • Manual Files: files/products/air-dome-400-product-data/Air_Dome_400_EN.pdffiles/products/air-dome-400-product-data/Air_Dome_400_DE.pdf
  • Info Material Files: files/products/air-dome-400-product-data/GLP_Air_Dome_400_Cut_Sheet_EN.pdf
  • Header Image: AIR DOME 400
  • Product Picture Gallery:
    AIR DOME 400
    AIR DOME 400
    AIR DOME 400
    AIR DOME 400
    AIR DOME 400
    AIR DOME 400
  • Product info:
    • Long product text (editor):

      GLP Air Domes offer protection from rain and other environmental influences for small (400) to big (850) fixtures

      3 and 5 pin XLR sockets for DMX as well as PowerCON In and Out- provide maximum flexibility.

      The solid rubber feet guarantee a secure stand on any surface, with several mounting points, including safety anchor points, for versatile use.

      Hanging is also possible with special accessory rails.

      , Short product description: GLP Air Dome with a 405 mm base diameter
  • Regenschutz:
    • Daten enthalten?: ja , Farbe: Poliert , Anschlüsse: NEUTRIK PowerCON Mains, NEUTRIK XLR 3-Pin & 5-Pin , Features: Sensorgesteuerte Luftdruckregelung | Getrennte Hauptschalter für Gerät und Lüfter | Regelbarer Lüfter (4 Stufen) | Luftdruck-Warnanzeige | Ösen für Bodenanker | Anschlagpunkte für Rigging & Safeties, Material: Aluminium
  • Rain Protection:
    • Color: Polished , Connectors: NEUTRIK PowerCON Mains, NEUTRIK XLR 3-Pin & 5-Pin , Features: Sensor-controlled air pressure control | Separate main switch for device and fan | Controlable Fan (4 Stages) | Air pressure warning indicator | Eyelets for ground anchors | Attachment points for rigging & Safeties, Material: Aluminum
  • Hits: 44

Written by Elisabeth Riemesch on . Posted in PD Installation/Industrial.

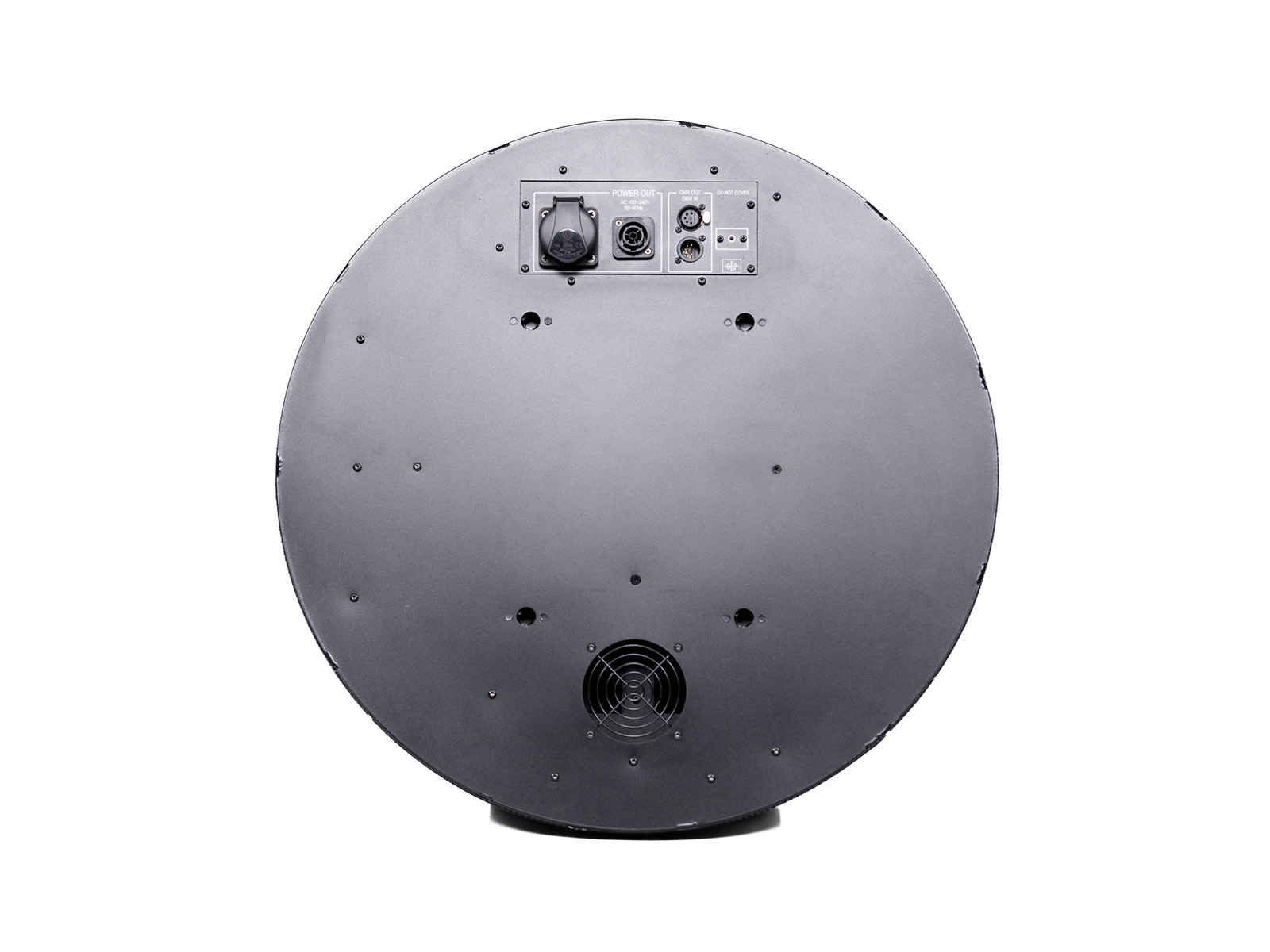

AIR DOME 600 – Product Data

  • Manual Files: files/products/air-dome-600-product-data/GLP_Air_Dome_600_Basic_User_Manual_EN_Rev20241122-1.pdf
  • Info Material Files: files/products/air-dome-600-product-data/GLP_Air_Dome_600_Cut_Sheet_EN.pdf
  • Header Image: Air Dome 600 Basic
  • Product Picture Gallery:
    Air Dome 600 Basic
    Air Dome 600 Basic
    Air Dome 600 Basic
    Air Dome 600 Basic
  • Product info:
    • Long product text (editor):

      GLP Air Domes Basic offer protection from rain and other environmental influences for small (400) to big (850) fixtures

      5 pin XLR sockets for DMX as well as PowerCON In and Out provide maximum flexibility.

      The solid rubber feet guarantee a secure stand on any surface, with several mounting points, including safety anchor points, for versatile use.

      Hanging is also possible with special accessory rails.

      , Short product description: GLP Air Dome with 600 mm base diameter
  • Anschlüsse:
    • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out
  • Aufbau:
    • Daten enthalten?: ja , Eigenschaften: Hock&Loop-Streifen für auswechselbare Domes | schwenkbare Dübel für Bodenverankerung | 2 Paar Camlocks für optionales Adapter Bracket | innere Anschlüsse: CEE 7/3 (Schuko) socket (AC), PowerCON TRUE1 Out, XLR 5-Pin In/Out | IP 43 rating mit Dome-Abdeckung, Gehäusefarbe: schwarz , Gehäusematerial: Stahlblech , Schutzklasse: IP20
  • Steuerung & Programmierung:
    • Daten enthalten?: ja , Weitere Steuerungsoptionen: 4 Lüfter-Geschwindigkeiten | Service Mode
  • Maße & Gewicht:
    • Daten enthalten?: ja , Höhe: Base: 207 mm / 8.14 in, Gewicht (netto): 12 kg / 26.45 lbs, Breite: Base Durchmesser: 600 mm / 23.62 in
  • Elektrische Spezifikationen:
    • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 45 W
  • Installation:
    • Daten enthalten?: ja , Standort: outdoor , Befestigung: Adapter Bracket , Ausrichtung: stehend , Mindestabstand zu entzündlichen Materialien: 0,1 m
  • Connections:
    • Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik XLR 5-Pin In/Out
  • Construction:
    • Construction features: Hock&Loop Stripes for Changeable Domes | pivoting ground anchoring plugs | 2 pair of camlock for installation of optional fixture mounting adapter bracket | inner connections: CEE 7/3 (Schuko) socket (AC), PowerCON TRUE1 Out, XLR 5-Pin In/Out IP 43 rating with dome cover, Housing color: Black , Housing material: steel metal plates , Protection Rating: IP20
  • Electrical Specifications:
    • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 45 W
  • Installation:
    • Location: Outdoor , Mounting: Adapter Bracket , Orientation: standing , min. distance to combustible materials: 0.1 m
  • Dimensions & Weight:
    • Height: Base: 207 mm / 8.14 in, Weight (netto): 12 kg / 26.45 lbs, Width: Base diameter: 600 mm / 23.62 in
  • Control & Programming:
    • Other control options: 4 fan speeds | Service Mode
  • Hits: 40

Written by Elisabeth Riemesch on . Posted in PD Installation/Industrial.

AIR DOME 850 – Product Data

  • Manual Files: files/products/air-dome-850-product-data/GLP_Air_Dome_850_Basic_-_Pro_-_User_Manual_EN_Rev20241127-1.pdf
  • Info Material Files: files/products/air-dome-850-product-data/GLP_Air_Dome_850_Cut_Sheet_EN.pdf
  • Header Image: Air Dome 850 Basic
  • Product Picture Gallery:
    Air Dome 850 Basic
    Air Dome 850 Basic
    Air Dome 850 Basic
  • Product info:
    • Long product text (editor):

      GLP Air Dome Basic offer protection from rain and other environmental influences for small (400) to big (850) fixtures

      3 and 5 pin XLR sockets for DMX as well as PowerCON In and Out provide maximum flexibility.

      The solid rubber feet guarantee a secure stand on any surface, with several mounting points, including safety anchor points, for versatile use.

      Hanging is also possible with special accessory rails.

      , Short product description: GLP Air Dome with 855 mm base diameter
  • Anschlüsse:
    • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out
  • Aufbau:
    • Daten enthalten?: ja , Eigenschaften: Hock&Loop-Streifen für auswechselbare Domes | schwenkbare Dübel für Bodenverankerung | 2 Paar Camlocks für optionales Adapter Bracket | innere Anschlüsse: CEE 7/3 (Schuko) socket (AC), PowerCON TRUE1 Out, XLR 5-Pin In/Out | IP 43 rating mit Dome-Abdeckung, Gehäusefarbe: schwarz , Gehäusematerial: Stahlblech , Schutzklasse: IP20
  • Steuerung & Programmierung:
    • Daten enthalten?: ja , Weitere Steuerungsoptionen: 4 Lüfter-Geschwindigkeiten | Service Mode
  • Maße & Gewicht:
    • Daten enthalten?: ja , Höhe: Base: 207 mm / 8.14 in, Gewicht (netto): 17 kg / 37.47 lbs, Breite: Base Durchmesser: 900 mm / 35.43 in
  • Elektrische Spezifikationen:
    • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 45 W
  • Installation:
    • Daten enthalten?: ja , Standort: outdoor , Befestigung: Adapter Bracket , Ausrichtung: stehend , Mindestabstand zu entzündlichen Materialien: 0,1 m
  • Connections:
    • Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik XLR 5-Pin In/Out
  • Construction:
    • Construction features: Hock&Loop Stripes for Changeable Domes | pivoting ground anchoring plugs | 2 pair of camlock for installation of optional fixture mounting adapter bracket | inner connections: CEE 7/3 (Schuko) socket (AC), PowerCON TRUE1 Out, XLR 5-Pin In/Out IP 43 rating with dome cover, Housing color: Black , Housing material: steel metal plates , Protection Rating: IP20
  • Electrical Specifications:
    • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 45 W
  • Installation:
    • Location: Outdoor , Mounting: Adapter Bracket , Orientation: standing , min. distance to combustible materials: 0.1 m
  • Dimensions & Weight:
    • Height: Base: 207 mm / 8.14 in, Weight (netto): 17 kg / 37.47 lbs, Width: Base diameter: 900 mm / 35.43 in
  • Control & Programming:
    • Other control options: 4 fan speeds | Service Mode
  • Hits: 40
