Written by Elisabeth Riemesch on 17 November 2023. Posted in PD Event Lighting.

JDC2 IP – Product Data

• Manual Files: files/products/jdc2-ip-product-data/JDC2_IP_Quick_Start_and_Safety_Manual_Rev_20240905-08.pdffiles/products/jdc2-ip-product-data/GLP_JDC2_IP_User_Manual_EN_Rev_20241001-03.pdffiles/products/jdc2-ip-product-data/20241001_-_Tech_Note_-_GLP_JDC2_IP_Smoked_Diffuser_Filter_Rev_20241010-1.pdffiles/products/jdc2-ip-product-data/GLP_JDC2_NDI_Information_Rev20241025-1.pdf
• DMX Charts: files/products/jdc2-ip-product-data/JDC2_IP_DMX_Channel_Index_Rev_20241002-04.pdf
• Photometric Files: files/products/jdc2-ip-product-data/GLP_JDC2_IP_Photometrics_Rev20240110-1_PRELIMINARY.zip
• Fixture Lib. Files: files/products/jdc2-ip-product-data/GLP_JDC2_IP_Fixture_Profil_MA2_Rev20240405-1.zipfiles/products/jdc2-ip-product-data/GLPJDC2_IP_Rev20240508-1.zipfiles/products/jdc2-ip-product-data/Fwd__JDC2_-_Fixture_Profile.zip
• CAD Files: files/products/jdc2-ip-product-data/GLP_JDC2_IP_Vectorworks_Rev20240410-1.zipfiles/products/jdc2-ip-product-data/GLP_JDC2_IP_CAD_Package_Rev20240516-1.zip
• Info Material Files: files/products/jdc2-ip-product-data/GLP_JDC2-IP.pdffiles/products/jdc2-ip-product-data/JDC2-IP_datasheet_20250117.pdf
• Header Image:
• Product Picture Gallery:



  JDC2 IP



  JDC2 IP







• Firmware: files/products/jdc2-ip-product-data/GLP_JDC2_IP_Firmware_V0-6-1_Rev20240523-1.zip
• Product info:
  • Long product text (editor):

    Bigger. Better. Brighter.

    GLPs JDC2 IP is the design tool you've been waiting for!

    GLP JDC2 IP is the new innovative hybrid strobe with more visibility, increased output and advanced creativity. The new integrated beam line is equipped with 84 high-performance LEDs which are highly efficient at 10 W each and produce a flash that is more powerful than ever. The optimized, extremely steep flash ramps ensure an even more realistic and intense strobe impression. With 12 individually controllable segments, the beam line offers extended intensity flash effects and more than 100 static and dynamic strobe patterns.

    With 1,025 cm² (159 in²) luminous surface, not only does the visual solid angle increase, but the visibility of the surface is perceived as larger and up to 25% brighter. The saturated colors and exceptional brightness of the 1,728 LEDs provide powerful diffuse lighting. This allows stages and spaces to be completely immersed in color. An impressive, rich color environment is created, especially when combined with haze. The specialized black LED masking ensures a black front appearance, while eliminating reflection from other light sources.

    Of course, the two color plates can be addressed separately, in 12 or 24 individual segments. Additionally, the new JDC2 IP offers the ability to create breathtaking digital effects with an individually controllable pixel matrix. A built-in powerful Dual Cortex CPU with 3D graphic processing offers you a variety of impressive effects – the so called GLP DigiFX. With over 100 designed GLP DigiFX, the JDC2 IP provides an extremely wide range of digital content. To go one step further, multiple effect manipulations can be applied in real time. This opens up endless creative possibilities for integrating the JDC2 into your show…all without any media server or other external players. Two fail-safe GigaBit EtherCon ports allow you to capture up to four different external NDI streams and display them directly on the JDC2 IP, without any dedicated interface, license-bound protocols or expensive video processors being required.

    The head of the JDC2 IP is motorized with approx. 180° tilt and therefore can be perfectly aligned for thoughtful lighting design. The extremely robust housing in a modern design is, of course, IP65-rated and suits both permanent indoor as well as temporary outdoor applications. Of course, the GLP JDC2 IP also offers the innovative GLP iQ.Mesh interface with NFC Connect for exceptional ease of service. Extremely simple system integration and control of the internal effects and DigiFX allow users to focus on what it's all about – creative design!

    , Short product description: 84 high-performance White Light LEDs combined with 1,728 RGB LEDs
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out, Gigabit etherCON ports In/Out (failsafe)
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: Tilt-Lock-System | Alignment System | Haltegriffe im Kopf | gebaut für optionales Zubehör, Gehäusefarbe: schwarz , Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech , Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: M1: Dual Strobe | M2: Segment 1-1 | M3: Segment 12-12 | M4: Segment 12-24 (standard) | M5: JDC1 Spix Patch, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (optional), LumenRadio CRMX (FPO), GLP iQ.Mesh , Dimmerkurven: linear, soft , Fan Modes: regulated, high, medium, low, minimum , High-Res Channels: Dimmer | Tilt | X/Y Position, Weitere Steuerungsoptionen: Beam Pattern Effect Engine | Plate DigiFX Engine | Beam/Plate Intensity Flash Effects, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe: 230 mm / 9.06 in, Höhe: 452 mm / 17.8 in, Höhe (Kopf gerade hoch): 354 mm / 13.94 in, Gewicht (netto): 23,5 kg / 51.8 lbs, Breite (Arm zu Arm): 444 mm / 17.48 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: 2-fach RGB, über DigiFX , Dimmer / Shutter: 0 – 100%, 16 bit , Duration Channel: absolute oder percentage, GLP DigiFX: Plate: bis zu 80 Effekte, Anpassung in Echtzeit von Geschwindigkeit, Ausrichtung, Zoom und 4 speziellen Effekt-Kanälen, 2-fache RGB-Farbmischung, bis zu 100 vorprogrammierte Preset Effects, bis zu 4 NDI/FVP Stream Capturing mit relativer, segmentierter oder absoluter Capture Frame Positionierung , Intensity Effects: große Auswahl an verschiedenen Strobe Intensity Effects, Pattern Effekte: Beam: bis zu 100 statische und dynamische Pattern Effekte , Vorprogrammierte Effekte: über DigiFX: bis zu 80 dynamische Plate Effekte | Echtzeit-Einstellung von Geschwindigkeit, Ausrichtung, Zoom | 4 special FX Kanäle, Strobe-Rate: langsam bis schnell, kontinuierlich ein
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 1.500 W
• Lichtquelle:
  • Daten enthalten?: ja , Anzahl: Beam: 84 | Plate: 1.728, Typ: Beam: White Strobe LEDs | Plate: RGB LEDs
• Installation:
  • Daten enthalten?: ja , Standort: indoor, indoor, outdoor , Befestigung: 2 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel , Ausrichtung: beliebig , Mindestabstand zu entzündlichen Materialien: 0,1 m , Mindestabstand zu beleuchteten Oberflächen: 1,0 m
• Bewegung:
  • Daten enthalten?: ja , Tilt Angle: 184°, 16 bit
• Optisches System:
  • Daten enthalten?: ja , Frontlinse: 2 rechteckige Linsen, je 377 x 111 mm / 14.8 x 4.4 in, max. beam angle: Beam: 150°/49° | Plate: 160°/160°, Maximale Lichtintensität: 80 kcd, Licht-Output: Beam: bis zu 47.000 lm | Plate: bis zu 20.000 lm
• Light Source:
  • Count: Beam: 84 | Plate: 1,728, Type: Beam: White Strobe LEDs | Plate: RGB LEDs
• Lieferung:
  • Daten enthalten?: ja , Tourpack: 3-fach, Omega Brackets
• Dynamic Effects:
  • Color Mixing: 2-way RGB, via DigiFX , Dimmer / Shutter: 0 – 100%, 16 bit , Duration Channel: absolute or percentage, GLP DigiFX: Plate: up to 80 dynamic effects, real time manipulation of speed, orientation, zoom and 4 spezial FX Channels, 2 way RGB ColorMix, up to 100 preprogrammed Preset Effects, up to 4 NDI/FVP Stream capturing with relative, segmental or absolut capture frame positioning , Intensity Effects: wide range of different Strobe Intensity Effects, Pattern Effects: Beam: up to 100 static or dynamic pattern effects , Preprogrammed effects: via DigiFX: real time manipulation of speed, orientation, zoom | 4 special FX Channels
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Kühlung: Kombination aus Konvektions- und Zwangskühlung , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 5.150 BTU/hr, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: -10 °C / 14 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik XLR 5-Pin In/Out, Gigabit etherCON ports In/Out (failsafe)
• Construction:
  • Construction features: Tilt-Lock-System | Alignment System | Head handles | built for optional accessories, Housing color: Black , Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates , Protection Rating: IP65
• Movement:
  • Tilt Angle: 184°, 16 bit
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 1,500 W
• Installation:
  • Location: Indoor, Indoor, Outdoor , Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable , Orientation: any , min. distance to combustible materials: 0.1 m , min. distance to illuminated surfaces: 1.0 m
• Shipping:
  • Tourpack: 3-way, Omega Brackets
• Dimensions & Weight:
  • Depth: 230 mm / 9.06 in, Height: 452 mm / 17.8 in, Height (head straight up): 354 mm / 13.94 in, Weight (netto): 23.5 kg / 51.8 lbs, Width (across yoke): 444 mm / 17.48 in
• Optical System:
  • Front lens: 2 rectangular lenses, each 377 x 111 mm / 14.8 x 4.4 in, max. beam angle: Beam: 150°/49° | Plate: 160°/160°, Peak Luminous Intensity: 80 kcd, Total Output: Beam: up to 47,000 lm | Plate: up to 20,000 lm
• Control & Programming:
  • Control Modes: M1: Dual Strobe | M2: Segment 1-1 | M3: Segment 12-12 | M4: Segment 12-24 (default) | M5: JDC1 Spix Patch, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), GLP iQ.Mesh , Dimming curves: linear, soft , Fan Modes: regulated, high, medium, low, minimum , High-Res Channels: Dimmer | Tilt | X/Y Position, Other control options: Beam Pattern Effect Engine | Plate DigiFX Engine | Beam/Plate Intensity Flash Effects, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone , Software update: GLP iQ.Mesh
• Thermal Specifications:
  • Cooling Type: combined convection and forced air , Overheating protection: automatic , Total heat dissipation: 5,150 BTU/hr, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: -10 °C / 14 °F

PC.Entertainment, PB.GLP, JDC2 IP

• Hits: 65

Written by Elisabeth Riemesch on 21 August 2023. Posted in PD Event Lighting.

impression X5 Bar 1000 – Product Data

• Manual Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Quick_Start_Safety_Manual_Rev_20231024-01_3.pdffiles/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_User_Manual_EN_Rev_20240207-01.pdf
• DMX Charts: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_DMX_Channel_Index_EN_Rev_20240207-01.pdf
• Photometric Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Photometrics_Rev20230420_PRELIMINARY.zip
• Fixture Lib. Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_BAR_1000_MA2_Fixture_Profiles_Rev_20240110-1.zip
• CAD Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_CAD_Rev20230420-1.zipfiles/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Vectorworks_Rev20230420-1.zip
• Info Material Files: files/products/impression-x5-bar-1000-product-data/GLP_impression-X5-Bar.pdffiles/products/impression-x5-bar-1000-product-data/impression-X5-Bar_datasheet_Rev20250120.pdf
• Header Image:
• Product Picture Gallery:



  impression X5 Bar 1000



  impression X5 Bar 1000

• Tender Text Files: files/products/impression-x5-bar-1000-product-data/GLP_impression_X5_Bar_1000_Tendertext_EN_DE_Rev_20250313-1.zip
• Product info:
  • Long product text (editor):

    The GLP impression X5 Bar is a linear LED batten with 18 powerful 40 W RGBL LED's, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.

    The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 3.0°, and delivering smooth and homogenous washes all the way out to its widest 63° wash.

    As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

    The impression X5 Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired control as standard.

    , Short product description: Linear LED batten, 18x 40 W RGBL LED's with up to 7,500 lm output
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: Tilt-Lock-System | Alignment System | Gewinde für externes Zubehör | Einschub-Filtersystem, Gehäusefarbe: schwarz , Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech , Schutzklasse: IP20
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed | M6: Multipix Compressed RGBL, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh , DMX Channels: M1: 20 | M2: 33 | M3: 48 | M4: 84 | M5: 63 | M6: 81, Dimmerkurven: linear, soft, S-Curve , Fan Modes: regulated, high, medium, low , High-Res Channels: Intensity Global | Tilt | Colormix, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth , Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC über iQ.Service App, 1 Scene Stand Alone , Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push , Subfixture Mode: normal, independent , Weißpunkte: optional: 8.000 K | 5.600 K | 4.200 K | 3.200 K
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe (Kopf gerade hoch): 110 mm / 4.33 in, Höhe: 296 mm / 11.65 in, Gewicht (netto): 20.2 kg / 44.5 lbs, Breite (Arm zu Arm): 1.000 mm / 39.4 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGB, RAW, x;y , Color Mix Priority: verschiedene Einstellungen für Layer Priority , Farbrad: virtuell, 64 LEE referenzierte Farben, Regenbogen, CQC: High Output (HO), High Quality (HQ), Desaturation , CTC: variabel 2.500 – 10.000 K , Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc. , Magenta/Grün-Korrektur: vorhanden , Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten , Zoom speed: superschnelle Zoom-Mechanik
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 750 W
• Lichtquelle:
  • Daten enthalten?: ja , CRI: 8.000 K: 87 | 6.500 K: 86+ | 3.200 K: 84+, CT: 6.500 K, Anzahl: 18, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten , LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4.600 Hz, High 2: 13.000 Hz, alle Werte gerundet; für genauere Informationen GLP Support kontaktieren , Lebensdauer: 50.000 h , Leistung: 40 W, TLCI: 8.000 K: 90 | 6.500 K: 88+ | 3.200 K: 74+, TM-30-15: 6.500 K: 87/105 | 3.200 K: 85/110, Typ: RGBL LED
• Installation:
  • Daten enthalten?: ja , Standort: indoor, indoor , Befestigung: 2 Ösen für Sicherungskabel, 4 Paar 1/4-Drehverschlüsse für 2 Installation Brackets , Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: ja , Tilt Angle: 205°, 16 bit
• Optisches System:
  • Daten enthalten?: ja , Frontlinse: 18 quadratische Linsen: 48 x 48 mm / 1.88 x 1.88 in, max. Zoom: 63°, min. Zoom: 3,0°, Licht-Output: bis zu 7.500 lm, Zoomverhältnis: 1:17
• Light Source:
  • CRI: 8,000 K: 87 | 6,500 K: 86+ | 3,200 K: 84+, CT: 6,500 K, Count: 18, Duv: perfect white point matches with low Duv values , LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; for detailed information, contact GLP Supprt , Lifetime: 50,000 h , Power: 40 W, TLCI: 8,000 K: 90 | 6,500 K: 88+ | 3,200 K: 74+, TM-30-15: 6,500 K: 87/105 | 3,200 K: 85/110, Type: RGBL LED
• Dynamic Effects:
  • Color Mixing: RGB, RAW, x;y , Color Mix Priority: different Layer Priority settings , Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation , CTC: variable 2,500 – 10,000 K , Dimmer / Shutter: 0 – 100%, 16 bit, Strobe effects, instant open and blackout , Magenta/Green-Correction: Yes , Pattern Effects: 50 dynamic pattern macros with special effects , Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix , Zoom speed: fast mechanics
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Kühlung: Kombination aus Konvektions- und Zwangskühlung , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 2.600 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Construction:
  • Construction features: Tilt-Lock-System | Alignment System | Threads for external accessory | Smart Slide-In Filter System, Housing color: Black , Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates , Protection Rating: IP20
• Movement:
  • Tilt Angle: 205°, 16 bit
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 750 W
• Installation:
  • Location: Indoor, Indoor , Mounting: 2 eyelets for safety cable, 4 pairs of 1/4-turn locks for 2 Installation Brackets , Orientation: any
• Dimensions & Weight:
  • Depth (head straight up): 110 mm / 4.33 in, Height: 296 mm / 11.65 in, Weight (netto): 20.2 kg / 44.5 lbs, Width (across yoke): 1,000 mm / 39.4 in
• Optical System:
  • Front lens: 18 square lenses: 48 x 48 mm / 1.88 x 1.88 in, max. Zoom: 63°, min. Zoom: 3.0°, Total Output: up to 7,500 lm, Zoom ratio: 1:17
• Control & Programming:
  • Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed | M6: Multipix Compressed RGBL, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh , DMX Channels: M1: 20 | M2: 33 | M3: 48 | M4: 84 | M5: 63 | M6: 81, Dimming curves: linear, soft, S-Curve , Fan Modes: regulated, high, medium, low , High-Res Channels: Intensity Global | Tilt | Colormix, Other control options: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth , Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC via iQ.Service App, 1 Scene Stand Alone , Software update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push , Subfixture Mode: normal, independent , White Points: optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
• Thermal Specifications:
  • Cooling Type: combined convection and forced air , Overheating protection: automatic , Total heat dissipation: 2,600 BTU/h, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F

• Hits: 44

Written by Elisabeth Riemesch on 03 August 2023. Posted in PD Event Lighting.

ArenaLED3 – Product Data

• Header Image:
• Product Picture Gallery:



  ArenaLED3

• Product info:
  • Long product text (editor):

    With the ArenaLED3 lighting system, GLP offers a solution for professional sports and event venues, as well as for any kind of large-scale events that require dynamically innovative lighting for unforgettable visitor experiences. In addition to the prescribed conventional basic lighting, dynamic and color dynamic sceneries can be integrated at any time. This not only enhances the visitor experience, it also increases sales figures by boosting the rate of repeat visits and increasing the length of stay. The additional revenue generated by this leads to a faster payback of the system.

    The core of the ArenaLED3 system consists of an extremely efficient clusterable luminaire unit with high light generation efficiency and a luminaire luminous flux of up to 62,700 lumens. The three swiveling luminaire heads within the ArenaLED3 can be individually aligned to the lighting requirements, ensuring optimal homogeneous light distribution in accordance with the standard at all times. The ArenaLED3 modules are available as two mounting types (Type A and Type B).

    , Short product description: Dynamic lighting for unforgettable visitor experiences
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik Top Series XLR In/Out
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: Tilt-Lock-System | Alignment System | 90° installierbares Bracket, Gehäusefarbe: grau (ähnlich RAL 7035) , Gehäusematerial: Aluminium, Stahlblech , Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: Normal | Advanced | Pro (Color Version), Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20) , DMX Channels: 7 | 11 | 34, Dimmerkurven: logarithmic, linear, soft , Einstellung und Adressierung: RDM , Geräte-Update: DMX Link via Dprog
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe: Type A: 242 mm / 9.53 in | Type B: 186 mm / 7.32 in, Höhe: 301 mm / 11.85 in, Gewicht (netto): Type A: 31 kg / 68 lbs | Type B: 29 kg / 64 lbs, Breite: 794 mm / 31.26 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGBW, RGBL , Dimmer / Shutter: 0 – 100%, 8 bit
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , Netzanschluss Input: 180 – 305 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): White Version: 660 W | RGB Version: 600 W
• Lichtquelle:
  • Daten enthalten?: ja , CRI: White Version: 80+, CT: White Version: 5.600 K, Anzahl: White Version: 108 | Color Version: 27, Lebensdauer: 50.000 h , Leistung: White Version: 660 W | Color Version: 600 W, TLCI: White Version: 80+, TM-30-15: White Version: 85+ / 95+, Typ: White Version: 6 W LED 5.700 K | Color Version: RGBL LED
• Installation:
  • Daten enthalten?: ja , Standort: indoor, outdoor , Befestigung: Ösen für hängende Installation, Bracket für Deckenaufhängung und Aufstellung auf dem Boden, Clustersystem für Light-Array , Ausrichtung: beliebig
• Bewegung:
  • Pan Angle: einzelne Köpfe schwenkbar bis zu ±30°, Tilt Angle: einzelne Köpfe in 2,5° Schritten neigbar, bis zu ±25° | Gesamtkonstruktion über Montagebügel bis zu 50° neigbar
• Optisches System:
  • Daten enthalten?: ja , max. field angle: White Version: 15° (50%), 27° (10%), 35° (3%) | Color Version: 9,9° (50%), 18° (10%), 23° (3%), Licht-Output: White Version: bis zu 62.700 lm | Color Version: bis zu 28.650 lm
• Light Source:
  • CRI: White Version: 80+, CT: White Version: 5.600 K, Count: White Version: 108 | Color Version: 27, Lifetime: 50,000 h , Power: White Version: 660 W | Color Version: 600 W, TLCI: White Version: 80+, TM-30-15: White Version: 85+ / 95+, Type: White Version: 6 W LED 5,700 K | Color Version: RGBL LED
• Dynamic Effects:
  • Color Mixing: RGBW, RGBL , Dimmer / Shutter: 0 – 100%, 8 bit
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Kühlung: lüfterlose Konvektionskühlung , Gesamtwärmeabgabe: 2.255 BTU/h, max. Umgebungstemperatur: 50 °C / 122 °F, min. Umgebungstemperatur: -40 °C / -40 °F
• Connections:
  • Power connection: Neutrik powerCON In/Out , Signal connection: Neutrik Top Series XLR In/Out
• Construction:
  • Construction features: Tilt-Lock-System | Alignment System | head can be 90° installed, Housing color: Grey (similar RAL 7035) , Housing material: aluminum, steel metal plates , Protection Rating: IP65
• Movement:
  • Pan Angle: each head adjustable in pan up to ±30°, Tilt Angle: each head tiltable in 2.5° steps, up to ±25° | entire construction via installation bracket up to 50° tiltable
• Electrical Specifications:
  • Power Input: 180 – 305 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): White Version: 660 W | RGB Version: 600 W
• Installation:
  • Location: Indoor, Outdoor , Mounting: eyelets for hanging installation, installation Bracket for surface and ceiling mount, cluster system for light array , Orientation: any
• Dimensions & Weight:
  • Depth: Type A: 242 mm / 9.53 in | Type B: 186 mm / 7.32 in, Height: 301 mm / 11.85 in, Weight (netto): Type A: 31 kg / 68 lbs | Type B: 29 kg / 64 lbs, Width: 794 mm / 31.26 in
• Optical System:
  • max. field angle: White Version: 15° (50%), 27° (10%), 35° (3%) | Color Version: 9,9° (50%), 18° (10%), 23° (3%), Total Output: White Version: up to 62,700 lm | Color Version: up to 28,650 lm
• Control & Programming:
  • Control Modes: Normal | Advanced, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20) , DMX Channels: White Version: 2, 5 | RGB Version: 5, 8, Dimming curves: logarithmic, linear, soft , Setting and addressing: RDM , Software update: DMX Link via Dprog
• Thermal Specifications:
  • Cooling Type: convection , Total heat dissipation: 2,255 BTU/h, max. ambient temperature: 50 °C / 122 °F, min. ambient temperature: -40 °C / -40 °F

• Hits: 56

Written by Elisabeth Riemesch on 03 August 2023. Posted in PD Event Lighting.

FUSION X-PAR 18Z – Product Data

• Manual Files: files/products/fusion-x-par-18z-product-data/X-PAR-18Z_UserManual_EN_Rev_20240416-01.pdf
• DMX Charts: files/products/fusion-x-par-18z-product-data/FUSION_X-PAR_18Z_DMX_Channel_Index_EN_Rev20240621-01.pdf
• Fixture Lib. Files: files/products/fusion-x-par-18z-product-data/FUSION_X-Par_Series_MA2_Rev20240618-2_1.zip
• Info Material Files: files/products/fusion-x-par-18z-product-data/FUSION-X-PAR-18Z_Datasheet_Rev20240422.pdf
• Header Image:
• Product Picture Gallery:



  FUSION X-PAR 18Z



  FUSION X-PAR 18Z

• Tender Text Files: files/products/fusion-x-par-18z-product-data/FUSION_X-PAR_18Z_Tendertext_Rev20240122-1.zip
• Firmware: files/products/fusion-x-par-18z-product-data/FUSION_X-PAR_18Z_Firmware_V1-2-6_Rev20240620.zip
• Product info:
  • Long product text (editor):

    The FUSION X-PAR 18Z is a versatile LED PAR. With its The FUSION X-PAR 18Z is a versatile LED PAR. With its 190 mm Fresnel Zoom Lens and the single Source LED 180 W RGBL, it fits any application needed. The wide zoom range from 8.5° to 55° Degree provides perfect beam control. The big brother to the FUSION X-PAR 12Z, it provides a higher light output of up to 4,790 lm.

    The housing is constructed for standing without bracket, making it possible to use the FUSION X-PAR 18Z as uplighter with narrow beam as well as a general lighting fixture with wide angle to light up whole areas. Additionally, the M12 Thread placed on the back of the fixture enables vertical dropping and other mounting options.

    With its fanless IP65 rated design, it is prepared for all uses in- and outdoor.

    As part of the new range of GLP fixtures with the impressive GLP iQ.Gamut Technology, the FUSION X-PAR 18Z comes with great color algorithm and calibration. In combination with the RGBL LED, it has the power to choose between Color Quality or Output to match any application.

    , Short product description: A workhorse reinvented
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In , Signalverbindung: Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: einstellbarer Standfuß | M12 Gewinde für Drop Mounting | Bracket für niedrige Decken | Anbringung für optionales Zubehör (Filter Frame, Barndoor), Gehäusefarbe: schwarz , Gehäusematerial: Aluminium , Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: 6, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (standard), GLP iQ.Mesh , DMX Channels: 4 | 6 | 6 | 8 | 11 | 16, Dimmerkurven: linear, S-Curve, square, inverse square , Dimming Speed: fast, smooth , Fan Modes: regulated, high, medium, low , High-Res Channels: Dimmer, Einstellung und Adressierung: OLED Display mit 4 Knöpfen, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone , Geräte-Update: DMX Link via Updater, GLP iQ.Mesh
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe: 297,5 mm / 11.71 in, Höhe: 245 mm / 9.65 in, Gewicht (netto): 8,8 kg / 19.4 lbs, Breite: 245 mm / 9.65 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGBL , Farbrad: virtuell, 64 Lee Filter + 4 White Presets, CTC: variabel 2.500 – 10.000 K , Dimmer / Shutter: 0 – 100%, elektronisch, 8 bit / 16 bit , Zoom: motorisiert, 8 bit
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 200 W
• Lichtquelle:
  • Daten enthalten?: ja , CRI: 85+, Anzahl: 1, LED Refresh Rate: 600 Hz | 1.200 Hz | 2.200 Hz | 3.000 Hz | 4.800 Hz | 9.600 Hz | 25 kHz, Lebensdauer: 20.000 h , Leistung: 180 W, TLCI: 80+, Typ: RGBL LED
• Installation:
  • Daten enthalten?: ja , Standort: outdoor , Befestigung: 1 Öse für Sicherungskabel, 1x M12 Gewinde, zentriert, Double Bracket mit drei Löchern , Ausrichtung: beliebig , Mindestabstand zu entzündlichen Materialien: 0,2 m , Mindestabstand zu beleuchteten Oberflächen: 0,5 m
• Optisches System:
  • Daten enthalten?: ja , Durchmesser Lichtaustrittsfläche: 190 mm / 7.48 in, max. Zoom: 55°, min. Zoom: 8,5°, Licht-Output: bis zu 4.790 lm, Zoomverhältnis: 1:7
• Light Source:
  • CRI: 85+, Count: 1, LED Refresh Rate: 600 Hz | 1,200 Hz | 2,200 Hz | 3,000 Hz | 4,800 Hz | 9,600 Hz | 25 kHz, Lifetime: 20,000 h , Power: 180 W, TLCI: 80+, Type: RGBL LED
• Dynamic Effects:
  • Color Mixing: RGBL , Color wheel: virtual, 64 Lee Filter + 4 White Presets, CTC: variable 2,500 – 10,000 K , Dimmer / Shutter: 0 – 100%, electronical, 8 bit / 16 bit , Zoom: motorized, 8 bit
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Kühlung: Kombination aus Konvektions- und Zwangskühlung , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 680 BTU/h, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: -10 °C / 14 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In , Signal connection: Neutrik XLR 5-Pin In/Out
• Construction:
  • Construction features: floor standing with adjustable foot | M12 Thread for Drop Mounting | low-ceiling mounting with bracket | Holder for optional accessories (filter frame, barndoor), Housing color: Black , Housing material: aluminum , Protection Rating: IP65
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 200 W
• Installation:
  • Location: Outdoor , Mounting: 1 eyelet for safety cable, 1x M12 thread, centred, Double Bracket with three holes , Orientation: any , min. distance to combustible materials: 0.2 m , min. distance to illuminated surfaces: 0.5 m
• Dimensions & Weight:
  • Depth: 297.5 mm / 11.71 in, Height: 245 mm / 9.65 in, Weight (netto): 8.8 kg / 19.4 lbs, Width: 245 mm / 9.65 in
• Optical System:
  • Light aperature diameter: 190 mm / 7.48 in, max. Zoom: 55°, min. Zoom: 8.5°, Total Output: up to 4,790 lm, Zoom ratio: 1:7
• Control & Programming:
  • Control Modes: 6, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (default), GLP iQ.Mesh , DMX Channels: 4 | 6 | 6 | 8 | 11 | 16, Dimming speed: fast, smooth , Fan Modes: regulated, high, medium, low , High-Res Channels: Dimmer, Setting and addressing: OLED Display with 4 buttons, DMX, RDM, GLP iQ.Mesh, 1 Scene Stand Alone , Software update: DMX Link via Updater, GLP iQ.Mesh
• Thermal Specifications:
  • Cooling Type: combined convection and forced air , Overheating protection: automatic , Total heat dissipation: 680 BTU/h, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: -10 °C / 14 °F

• Hits: 52

Written by Elisabeth Riemesch on 03 August 2023. Posted in PD Event Lighting.

ArenaLED1 Touring – Product Data

• Manual Files: files/products/arenaled1-touring-product-data/GLP_ArenaLED1_Touring_Safety_and_User_Manuel_EN_Rev_20241104-01.pdf
• Photometric Files: files/products/arenaled1-touring-product-data/GLP_ArenaLED_Touring1_Color_Photometric_Rev20230526-1.zipfiles/products/arenaled1-touring-product-data/GLP_ArenaLED_Touring1_White_Photometric_Rev20230526-1.zip
• Fixture Lib. Files: files/products/arenaled1-touring-product-data/GLP_ArenaLED_1_Touring_MA2_Rev20230828-1.zip
• CAD Files: files/products/arenaled1-touring-product-data/GLP_ArenaLED1_Touring_Color_CAD_Rev_20230511-1.zipfiles/products/arenaled1-touring-product-data/GLP_ArenaLED1_Touring_White_CAD_Rev20230511-1.zipfiles/products/arenaled1-touring-product-data/GLP_ArenaLED1_Touring_Vectorworks_Rev20240703-1.zip
• Info Material Files: files/products/arenaled1-touring-product-data/ArenaLED1_Datasheet_20240103.pdffiles/products/arenaled1-touring-product-data/GLP_ArenaLED1-Touring_Rev20240103.pdf
• Header Image:
• Product Picture Gallery:



  ArenaLED1 Touring



• Product info:
  • Long product text (editor):

    With the ArenaLED1 touring spotlight, GLP offers a solution for professional sports and event venues, as well as for all kinds of large-scale events that require dynamically innovative lighting for unforgettable visitor experiences. In addition to the prescribed conventional basic lighting, dynamic and colour-dynamic sceneries can be integrated at any time.

    As a touring version of the ArenaLED system with a single luminaire head, it has a power supply unit and DMX connection. This makes it ideal for large-scale events and sporting events where fast, flexible solutions are required.

    The ArenaLED1 Touring consists of an extremely efficient luminaire unit with high light generation efficiency and a luminaire luminous flux of up to 24,900 lumens.

    , Short product description: Dynamic lighting for unforgettable visitor experiences
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik Top Series XLR In/Out
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: 90° installierbares Bracket | 8x M4 Gewinde für externes Zubehör, Gehäusefarbe: grau (ähnlich RAL 7035) , Gehäusematerial: Aluminium, Stahlblech , Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: Normal | Advanced | Pro (Color Version), Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20) , DMX Channels: White Version: 2 | 5; Color Version: 7 | 11 | 34, Dimmerkurven: logarithmic, linear, soft , Power Modes: Normal, Boost , Einstellung und Adressierung: RDM , Geräte-Update: DMX Link via Dprog
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe: ohne Bracket, White Version: 200 mm / 7.87 in | Color Version: 214 mm / 8.43 in, Höhe: ohne Bracket: 208,6 mm / 8.21 in | mit Bracket: 280,3 mm / 11.03 in, Gewicht (netto): White Version: 7,5 kg / 16.5 lbs | Color Version: 8,5 kg / 18.7 lbs, Breite: ohne Bracket: 208,6 mm / 8.21 in | mit Bracket: 266,2 mm / 10.48 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGBW, RGBL , Dimmer / Shutter: White Version: 10 – 100%, 8 / 16 bit | Color Version: 0 – 100%, 8 / 16 bit
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , EEC: White Version: A+ | Color Version: B, EEI: White Version: 0.14 | Color Version: 0.50, Ec: White Version: 257 kWh/1000h | Color Version: 281 kWh/1000h, Netzanschluss Input: 180 – 305 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , min. Leistung (bei 230 V): > 3,5 W, typ. Leistung (@ 230 V): White Version: 260 W | Color Version: 285 W
• Lichtquelle:
  • Daten enthalten?: ja , CRI: White Version: 85+ | Color Version: 90+, CT: 5.600 K, Anzahl: White Version: 36 | Color Version: 9, Lebensdauer: 50.000 h , Leistung: White Version: 220 W | Color Version: 200 W, TLCI: White Version: 80+ | Color Version: 90, TM-30-15: White Version: 98 / 86 | Color Version: 87 / 105, Typ: White Version: 6 W LED 5.700 K | Color Version: RGB(L) LED
• Installation:
  • Daten enthalten?: ja , Standort: indoor, outdoor , Befestigung: 2x Camlock für Omega Bracket, kippbares Bracket für Universalhalterung, 13 mm Loch , Ausrichtung: beliebig
• Optisches System:
  • Daten enthalten?: ja , max. field angle: White Version: 15° (50%), 27° (10%), 35° (3%) | Color Version: 9,9° (50%), 18° (10%), 23° (3%), Licht-Output: White Version: bis zu 24.900 lm | Color Version: bis zu 7.620 lm
• Light Source:
  • CRI: White Version: 85+ | Color Version: 90+, CT: 5,600 K, Count: White Version: 36 | Color Version: 9, LED Refresh Rate: Adjustable, UHD Safe PWM, Lifetime: 50,000 h , Power: White Version: 220 W | Color Version: 200 W, TLCI: White Version: 80+ | Color Version: 90, TM-30-15: White Version: 98 / 86 | Color Version: 87 / 105, Type: White Version: 6 W LED 5,700 K | Color Version: RGB(L) LED
• Dynamic Effects:
  • Color Mixing: RGBW, RGBL , Dimmer / Shutter: White Version: 10 – 100%, 8 / 16 bit | Color Version: 0 – 100%, 8 / 16 bit
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Kühlung: lüfterlose Konvektionskühlung , Gesamtwärmeabgabe: White Version: 720 BTU/hr | Color Version: 760 BTU/hr, max. Umgebungstemperatur: 50 °C / 122 °F, min. Umgebungstemperatur: -40 °C / -40 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik Top Series XLR In/Out
• Construction:
  • Construction features: Bracket can be 90° installed | 8x M4 Screw Threads for external Accessories, Housing color: Grey (similar RAL 7035) , Housing material: aluminum, steel metal plates , Protection Rating: IP65
• Electrical Specifications:
  • EEC: White Version: A+ | Color Version: B, EEI: White Version: 0.14 | Color Version: 0.50, Ec: White Version: 257 kWh/1000h | Color Version: 281 kWh/1000h, Power Input: 180 – 305 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , min. Power (@ 230 V): > 3.5 W, typ. Power (@ 230 V): White Version: 260 W | Color Version: 285 W
• Installation:
  • Location: Indoor, Outdoor , Mounting: 2x Camlock for Omega Bracket, Tiltable Bracket for universal mount, 13 mm hole , Orientation: any
• Dimensions & Weight:
  • Depth: without bracket, White Version: 200 mm / 7.87 in | Color Version: 214 mm / 8.43 in, Height: without bracket: 208,6 mm / 8.21 in | with bracket: 280,3 mm / 11.03 in, Weight (netto): White Version: 7.5 kg / 16.5 lbs; Color Version: 8.5 kg / 18.7 lbs , Width: without bracket: 208,6 mm / 8.21 in | with bracket: 280,3 mm / 11.03 in
• Optical System:
  • max. field angle: White Version: 15° (50%), 27° (10%), 35° (3%) | Color Version: 9.9° (50%), 18° (10%), 23° (3%), Total Output: White Version: up to 24,900 lm | Color Version: up to 7,620 lm
• Control & Programming:
  • Control Modes: Normal | Advanced | Pro (Color Version), Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20) , DMX Channels: White Version: 2 | 5; Color Version: 7 | 11 | 34, Dimming curves: logarithmic, linear, soft , Power Modes: Normal, Boost , Setting and addressing: RDM , Software update: DMX Link via Dprog
• Thermal Specifications:
  • Cooling Type: convection , Total heat dissipation: White Version: 720 BTU/hr | Color Version: 760 BTU/hr, max. ambient temperature: 50 °C / 122 °F, min. ambient temperature: -40 °C / -40 °F

• Hits: 58

Written by Elisabeth Riemesch on 03 August 2023. Posted in PD Event Lighting.

FUSION Supernova SN70 – Product Data

• Manual Files: files/products/fusion-supernova-sn70-product-data/Manual_Supernova_RGBW.pdf
• CAD Files: files/products/fusion-supernova-sn70-product-data/DWG_DXF_3_copy_2.zip
• Info Material Files: files/products/fusion-supernova-sn70-product-data/FUSION_SUPERNOVA-SN70.pdffiles/products/fusion-supernova-sn70-product-data/GLP_Installation_FUSION_SN70_DE.pdffiles/products/fusion-supernova-sn70-product-data/GLP_Installation_FUSION_SN70_EN.pdf
• Header Image:
• Product Picture Gallery:



  FUSION Supernova SN70



  FUSION Supernova SN70



  FUSION Supernova SN70

• Product info:
  • Long product text (editor):

    The incredible homogeneous pixel-free light output, paired with an extremely light luminance make it to everybody's darling and a jack of all trades, even as RGBW flood, as blinder, or strobe. The Supernova SN70 is a universal versatile and offers a maximum field of applications as stage light or backlight, in TV studios or with its protection class IP65 for all rough outdoor installations.

    , Short product description: 1,372 x Osram® RGBW LEDs, 60,000 lm, invisible pixel optic, IP65 classification, eventCON® system, 4 controllable LED zones
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In , Signalverbindung: Neutrik eventCON
• Aufbau:
  • Daten enthalten?: ja , Gehäusefarbe: schwarz , Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Protokolle: DMX (USITT DMX512-A), LumenRadio CRMX DMX/RDM (standard) , Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe (Kopf gerade hoch): 250 mm / 9.84 in, Höhe (Kopf gerade hoch): 307 mm / 12.08 in, Gewicht (netto): 13,5 kg / 29.76 lbs, Breite (Arm zu Arm): 484 mm / 19.05 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGBW , Dimmer / Shutter: 0 – 100%, elektronisch, auswählbare Dimmerkurven, Strobe-Effekte
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 700 W
• Lichtquelle:
  • Daten enthalten?: ja , CRI: 80+, Anzahl: 1.372, Lebensdauer: 50.000 h , Typ: RGBW LEDs
• Installation:
  • Daten enthalten?: ja , Befestigung: 2 Ösen für Sicherungskabel, M10 Gewinde
• Optisches System:
  • Daten enthalten?: ja , max. beam angle: 110°, Licht-Output: 60.000 lm
• Light Source:
  • CRI: 80+, Count: 1,372, Lifetime: 50,000 h , Type: RGBW LEDs
• Dynamic Effects:
  • Color Mixing: RGBW , Dimmer / Shutter: 0 – 100%, electronical, selectable dimming curves, Strobe effects
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 2.389 BTU/h, max. Umgebungstemperatur: 45 °C / 113 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In , Signal connection: Neutrik eventCON
• Construction:
  • Housing color: Black , Protection Rating: IP65
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 700 W
• Installation:
  • Mounting: 2 eyelets for safety cable, M10 thread
• Dimensions & Weight:
  • Depth (head straight up): 250 mm / 9.84 in, Height (head straight up): 307 mm / 12.08 in, Weight (netto): 13,5 kg / 29.76 lbs, Width (across yoke): 484 mm / 19.05 in
• Optical System:
  • max. field angle: 110°, Total Output: 60,000 lm
• Control & Programming:
  • Control Modes: 3, Control Protocols: DMX (USITT DMX512-A), LumenRadio CRMX DMX/RDM (default) , Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation
• Thermal Specifications:
  • Overheating protection: automatic , Total heat dissipation: 2,389 BTU/h, max. ambient temperature: 45 °C / 113 °F

• Hits: 60

Written by Elisabeth Riemesch on 01 August 2023. Posted in PD Event Lighting.

impression Spot One – Product Data

• Manual Files: files/products/impression-spot-one-product-data/Impression_SpotOne_Manual_V1.97_DE.PDFfiles/products/impression-spot-one-product-data/Impression_SpotOne_Manual_V1.97_EN.PDF
• DMX Charts: files/products/impression-spot-one-product-data/Impression_SpotOne_DMX_V1.55_DE.pdffiles/products/impression-spot-one-product-data/Impression_SpotOne_DMX_V1.55_EN.pdf
• Header Image:
• Product Picture Gallery:

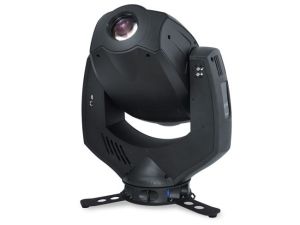

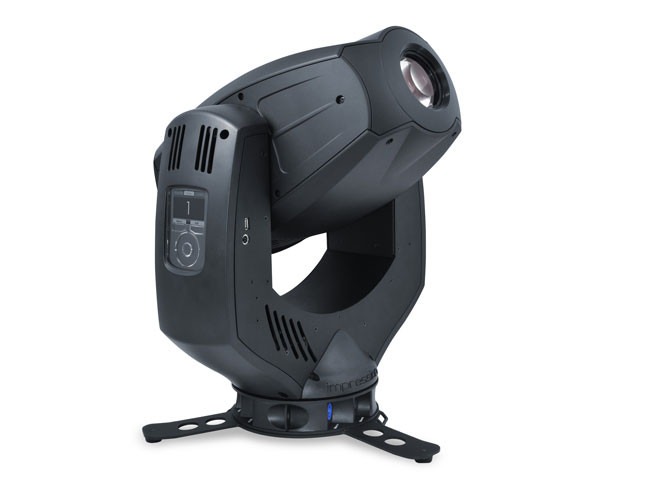

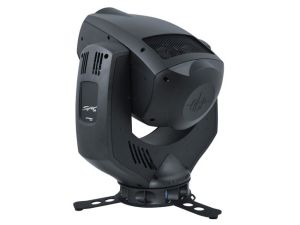

  impression Spot One



  impression Spot One



  impression Spot One

• Product info:
  • Long product text (editor):

    Harnessing the output of enough LED sources and achieving a focusable area for gobo projections has been a fixture that lighting designers have been asking for ever since LED became a viable source for entertainment lighting. The impression Spot One not only delivers, its the first of its kind.

    Key Benefits for lighting Designers

    Bright RGB LED Output ∙ Even light distribution ∙ Full, crisp color palette ∙ Clean white range of 3000K-8000K with high CRI ∙ Instant color bumps ∙ Sharp image projections ∙ 9° to 32° zoom ∙ 2 rotating gobo wheels – gobo animation wheel ∙ Super fast iris ∙ Rotating prism ∙ Smooth 100% dimming ∙ 16 bit movement ∙ Variable speed strobe ∙ Baseless design ∙ Near silent when running ∙ Weighs just 48.5 lbs. (22kg).

    Key Benefits for Owners

    Significantly lower handling and service costs ∙ No starters ∙ No expensive ballast ∙ No cost for discharge lamps ∙ No fragile dichroic colors ∙ No broken reflectors Tight LED binning for identical fixture performance ∙ RDM feedback with service information ∙ More than 20,000 hours lifetime ∙ Auto ranging power supply with low current draw ∙ On-board diagnostic testing, with USB download ∙From a proven moving head manufacturer

    , Short product description: The impression Spot One not only delivers, its the first of its kind
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON , Signalverbindung: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: ja , Gehäusefarbe: schwarz, Sonderfarben auf Anfrage
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: Compressed | HighRes, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net , Einstellung und Adressierung: beleuchtetes Grafik-LCD, beleuchtete Tasten, RDM
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe (Kopf gerade hoch): 472 mm / 18.58 in, Höhe (Kopf gerade hoch): 618 mm / 24.33 in, Gewicht (netto): 22 kg / 48.5 lbs, Breite (Arm zu Arm): 229 mm / 9.01
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGB , CTC: variabel 2.500 – 10.000 K , Dimmer / Shutter: 0 – 100%, elektronisch , Effektrad: rotier- und indexierbar, austauschbar , Gobo-Rad: 7 Gobos, dreh- und indexierbar, austauschbar, Dicro-Farbgobos, Gobo-Rad 2: 7 Gobos, dreh- und indexierbar, austauschbar, Dicro-Farbgobos, Iris: 4 – 100% , Prisma: 3-fach
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , EEC: E, EEI: 2,994, Ec: 467 kWh/1.000h, Sicherung: T8A 20mm , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , max. Leistung (@ 230 V): 550 W
• Lichtquelle:
  • Daten enthalten?: ja , Lebensdauer: 20.000 h , Leistung: 400 W, Typ: RGB LED
• Installation:
  • Daten enthalten?: ja , Befestigung: 2 Ösen für Sicherungskabel, Omega Bracket, abnehmbarer Standfuß mit Ösen für Ratschgurte , Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: ja , Pan Angle: 540°, 8 – 16 Bit, Tilt Angle: 280°, 8 – 16 Bit
• Optisches System:
  • Daten enthalten?: ja , Fokus: 2 m – unendlich, motorisiert , max. Zoom: 32°, min. Zoom: 10°
• Light Source:
  • Lifetime: 20,000 h , Power: 400 W, Type: RGB LED
• Lieferung:
  • Daten enthalten?: ja , einzelnes Gerät: Karton , Tourpack: 2-fach, Flightcase
• Dynamic Effects:
  • Color Mixing: RGB , CTC: variable 2,500 – 10,000 K , Dimmer / Shutter: 0 – 100%, electronical , Effect wheel: rotatable and indexable, interchangeable , Gobo wheel: 7 Gobos, rotatable and indexable, interchangeble, Dicro Color Gobos, Gobo wheel 2: 7 Gobos, rotatable and indexable, interchangeble, Dicro Color Gobos, Iris: 4 – 100% , Prism: 3-way
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Überhitzungsschutz: automatisch , max. Umgebungstemperatur: 45 °C / 115 °F
• Connections:
  • Power connection: Neutrik powerCON , Signal connection: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Construction:
  • Housing color: Black, special colors on request
• Movement:
  • Pan Angle: 540°, 8 – 16 Bit, Position correction system: Position feedback , Tilt Angle: 280°, 8 – 16 Bit
• Electrical Specifications:
  • EEC: E, EEI: 2.994, Ec: 467 kWh/1.000h, Fuse: T8A 20mm , Power Input: 100 – 240 VAC / 50 – 60 Hz
• Installation:
  • Mounting: 2 eyelets for safety cable, Omega Bracket , Orientation: any
• Shipping:
  • single fixture: carton , Tourpack: 2-way, Flightcase
• Dimensions & Weight:
  • Depth (head straight up): 472 mm / 18.58 in, Height (head straight up): 618 mm / 24.33 in, Weight (netto): 22 kg / 48.5 lbs, Width (across yoke): 229 mm / 9.01
• Optical System:
  • Focus: 2 m – infinity, motorized , max. Zoom: 32°, min. Zoom: 10°
• Control & Programming:
  • Control Modes: Compressed | HighRes, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net , Setting and addressing: backlit graphic LCD, intuitive touch wheel control, RDM
• Thermal Specifications:
  • Overheating protection: automatic , max. ambient temperature: 45 °C / 115 °F

• Hits: 45

Written by Elisabeth Riemesch on 01 August 2023. Posted in PD Event Lighting.

impression X1 – Product Data

• Manual Files: files/products/impression-x1-product-data/impression_X1_Manual_v1.0_EN.pdf
• DMX Charts: files/products/impression-x1-product-data/Impression_X1_DMX_v1.1_EN.pdf
• Fixture Lib. Files: files/products/impression-x1-product-data/HOG3__impression_X1_20ch.zip
• CAD Files: files/products/impression-x1-product-data/impression_X1_CAD.zip
• Header Image:
• Product Picture Gallery:



  impression X1



  impression X1



  impression X1

• Product info:
  • Long product text (editor):

    The impression X1 features 4 high powered 15 Watt RGBW LED‘s in a compact housing that features continuous pan and tilt motion. The fixed beam optics are interchangeable between different beam angles from the standard 7 degrees. The compact base of the impression X1 houses Powercon in and thru connectors for easy daisy chaining of multiple fixtures.

    , Short product description: 4 RGBW LEDs, each with 15 W, easy changeable optical system, fast and precise Pan-Tilt-Movement
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: ja , Gehäusefarbe: schwarz, Sonderfarben auf Anfrage
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: Normal | Compressed | HighRes, Protokolle: DMX (USITT DMX512-A) , Einstellung und Adressierung: beleuchtetes Grafik-LCD
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe (Kopf gerade hoch): 195 mm / 7.6 in, Höhe (Kopf gerade hoch): 255 mm / 12.2 in, Gewicht (netto): 3,1 kg / 6.8 lbs, Breite (Arm zu Arm): 140 mm / 5.5 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGBW , Dimmer / Shutter: 0 – 100%, elektronisch
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , EEC: C, EEI: 0,742, Ec: 69, Sicherung: T2A 20mm , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , max. Leistung (@ 230 V): 100 W
• Lichtquelle:
  • Daten enthalten?: ja , Anzahl: 4, Lebensdauer: 50.000 h , Typ: Ostram Ostar
• Installation:
  • Daten enthalten?: ja , Befestigung: 2 Ösen für Sicherungskabel, M10 Gewinde, Gummistandfüße
• Bewegung:
  • Daten enthalten?: ja , Pan Angle: 660°, 8 – 16 Bit, 360° kontinuierlich, Position correction system: Position feedback , Tilt Angle: 300°, 8 – 16 Bit, 360° kontinuierlich
• Optisches System:
  • Daten enthalten?: ja , max. Zoom: 7° (austauschbar)
• Light Source:
  • Count: 4, Lifetime: 50,000 h , Type: Osram Ostar
• Lieferung:
  • Daten enthalten?: ja , einzelnes Gerät: Karton , Tourpack: 6-fach, 12-fach, Flightcase
• Dynamic Effects:
  • Color Mixing: RGBW , Dimmer / Shutter: 0 – 100%, electronical
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Überhitzungsschutz: automatisch , max. Umgebungstemperatur: 45 °C / 115 °F
• Connections:
  • Power connection: Neutrik powerCON In/Out , Signal connection: Neutrik XLR 5-Pin In/Out
• Construction:
  • Housing color: Black, special colors on request
• Movement:
  • Pan Angle: 660°, 8 – 16 Bit, continuous 360°, Tilt Angle: 300°, 8 – 16 Bit, continuous 360°
• Electrical Specifications:
  • EEC: C, EEI: 0.742, Ec: 69, Fuse: T2A 20mm , Power Input: 100 – 240 VAC / 50 – 60 Hz
• Installation:
  • Mounting: 2 eyelets for safety cable, M10 thread, rubber feet , Orientation: any
• Shipping:
  • single fixture: carton , Tourpack: 6-way, 12-way, Flightcase
• Dimensions & Weight:
  • Depth (head straight up): 195 mm / 7.6 in, Height (head straight up): 255 mm / 12.2 in, Weight (netto): 3.1 kg / 6.8 lbs, Width (across yoke): 140 mm / 5.5 in
• Optical System:
  • max. Zoom: 7° (interchangeable)
• Control & Programming:
  • Control Modes: Normal | Compressed | HighRes, Control Protocols: DMX (USITT DMX512-A) , Setting and addressing: backlit graphic LCD
• Thermal Specifications:
  • Overheating protection: automatic , max. ambient temperature: 45 °C / 115 °F

• Hits: 64

Written by Elisabeth Riemesch on 01 August 2023. Posted in PD Event Lighting.

impression Wash One – Product Data

• Manual Files: files/products/impression-wash-one-product-data/Impression_WashOne_Manual_V1.02_DE.pdffiles/products/impression-wash-one-product-data/Impression_WashOne_Manual_V1.02_EN.pdf
• DMX Charts: files/products/impression-wash-one-product-data/Impression_WashOne_DMX_1.02_EN.pdffiles/products/impression-wash-one-product-data/Impression_WashOne_DMX_V1.02_DE.pdf
• Header Image:
• Product Picture Gallery:

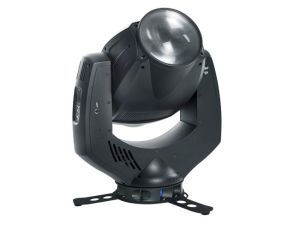

  impression Wash One



  impression Wash One

• Product info:
  • Long product text (editor):

    Boasting a 400W RGB LED light engine, and the same groundbreaking technology as the Spot One, the fully-featured luminaire is able to deliver delicate colour changes or instantaneous colour bumps over a wide, carefully-calibrated colour spectrum.

    The impression Wash One offers a 6°-60° zoom range — but the key differentiator is its innovative 3° narrow beam mode and its unique variable soft-edge beam control that allows softness adjustment. Another attribute is the beam shaping function that enables the user to illuminate only the parts of a stage that need to be lit.

    With its baseless yoke the Wash One weighs just 22 kg — perfect both for transportation and flexible stage rigging (in any orientation).

    , Short product description: Boasting a 400 W RGB LED light engine
• Anschlüsse:
  • Daten enthalten?: ja , Netzanschluss: Neutrik powerCON , Signalverbindung: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: ja , Eigenschaften: motorisierter Beamshaper, Gehäusefarbe: schwarz, Sonderfarben auf Anfrage
• Steuerung & Programmierung:
  • Daten enthalten?: ja , Control Modes: Compressed | HighRes, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net , Einstellung und Adressierung: beleuchtetes Grafik-LCD, beleuchtete Tasten, RDM
• Maße & Gewicht:
  • Daten enthalten?: ja , Tiefe (Kopf gerade hoch): 472 mm / 18.58 in, Höhe (Kopf gerade hoch): 618 mm / 24.33 in, Gewicht (netto): 22 kg / 48.5 lbs, Breite (über Kopf): 229 mm / 9.01 in
• Dynamische Effekte:
  • Daten enthalten?: ja , Farbmischung: RGB , CTC: variabel 2.500 – 10.000 K , Dimmer / Shutter: 0 – 100%, elektronisch , Frost: vorhanden
• Elektrische Spezifikationen:
  • Daten enthalten?: ja , EEC: E, EEI: 3,218, Ec: 473 kWh/1.000h, Sicherung: T8A 20mm , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , max. Leistung (@ 230 V): 550 W
• Lichtquelle:
  • Daten enthalten?: ja , Lebensdauer: 20.000 h , Typ: RGB LED
• Installation:
  • Daten enthalten?: ja , Befestigung: 2 Ösen für Sicherungskabel, Omega Bracket, einstellbare Schiene für seitliche Trussmontage (optional), abnehmbarer Standfuß mit Ösen für Ratschgurte , Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: ja , Pan Angle: 540°, 8 – 16 Bit, Position correction system: Position feedback , Tilt Angle: 280°, 8 – 16 Bit
• Optisches System:
  • Daten enthalten?: ja , Fokus: 2 m – unendlich, motorisiert , max. Zoom: 60°, min. Zoom: 6°
• Light Source:
  • Lifetime: 20,000 h , Type: RGB LED
• Lieferung:
  • Daten enthalten?: ja , einzelnes Gerät: Karton , Tourpack: 2-fach, Flightcase
• Dynamic Effects:
  • Color Mixing: RGB , CTC: variable 2,500 – 10,000 K , Dimmer / Shutter: 0 – 100%, electronical , Frost: yes
• Thermische Spezifikationen:
  • Daten enthalten?: ja , Überhitzungsschutz: automatisch , max. Umgebungstemperatur: 45 °C / 115 °F
• Connections:
  • Power connection: Neutrik powerCON , Signal connection: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Construction:
  • Construction features: motorized beamshaper, Housing color: Black, special colors on request
• Movement:
  • Pan Angle: 540°, 8 – 16 Bit, Position correction system: Position feedback , Tilt Angle: 280°, 8 – 16 Bit
• Electrical Specifications:
  • EEC: E, EEI: 3.218, Ec: 473 kWh/1.000h, Power Input: 100 – 240 VAC / 50 – 60 Hz , max. Power (@ 230 V): 550 W
• Installation:
  • Mounting: 2 eyelets for safety cable, Omega Bracket, adjustable rail for sideways truss installation (optional), removable baseplate with brackets for ratchet belt , Orientation: any
• Shipping:
  • single fixture: carton , Tourpack: 2-way, Flightcase
• Dimensions & Weight:
  • Depth (head straight up): 472 mm / 18.58 in, Height (head straight up): 618 mm / 24.33 in, Weight (netto): 22 kg / 48.5 lbs, Width (across yoke): 229 mm / 9.01 in
• Optical System:
  • Focus: 2 m – infinity, motorized , max. Zoom: 60°, min. Zoom: 6°
• Control & Programming:
  • Control Modes: Compressed | HighRes, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net , Setting and addressing: backlit graphic LCD, intuitive touch wheel control, RDM
• Thermal Specifications:
  • Overheating protection: automatic , max. ambient temperature: 45 °C / 115 °F

• Hits: 47
