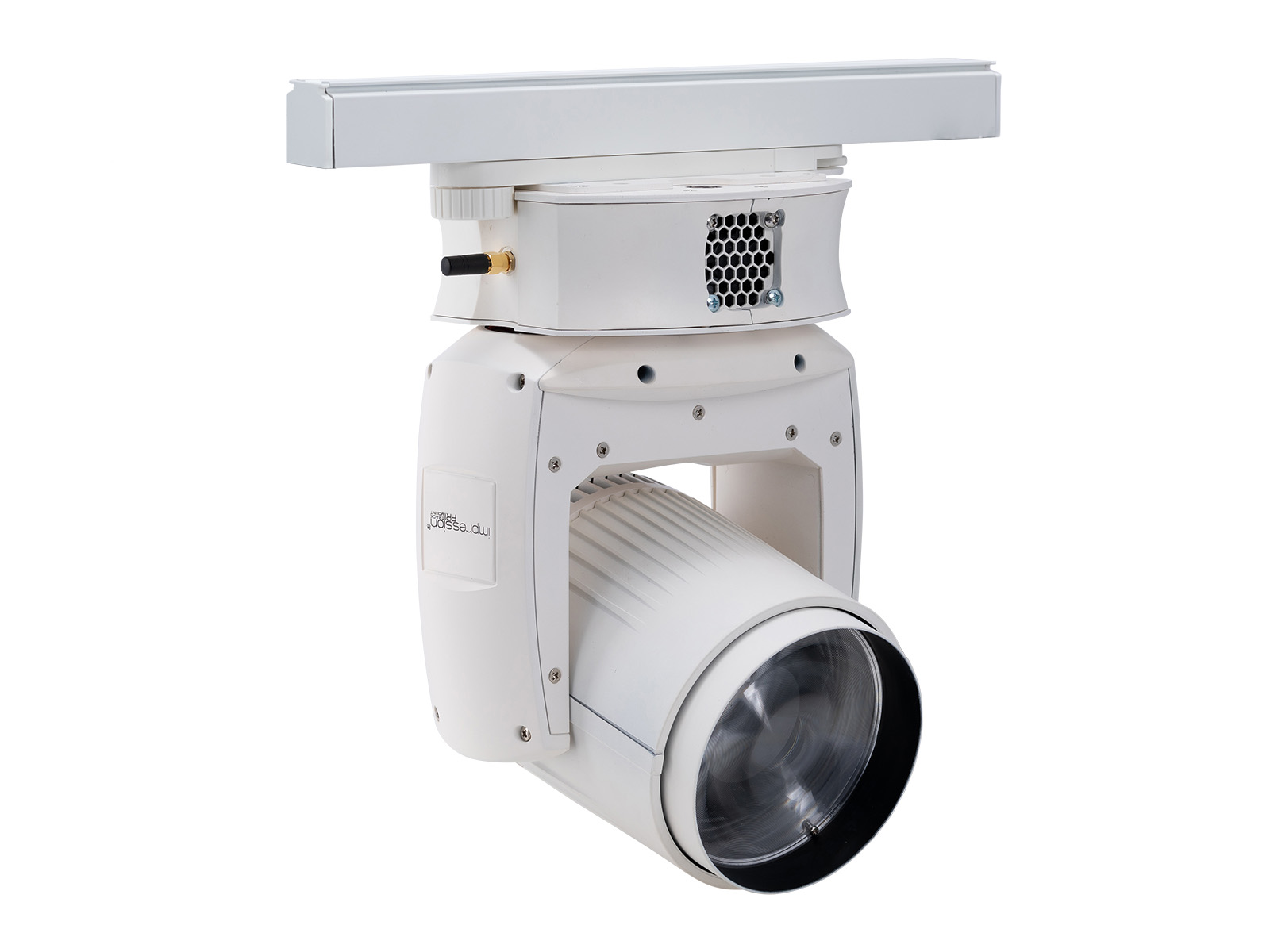

The GLP impression FR1 TM is the latest compact LED moving head which can be mounted on ERCO and compatible track mount systems.
But that's not all – the optical system can move from a 4° soft Narrow Beam to a 35° soft wide Wash Light. Optionally it is possible to remove the soft front diffusor to get a more hard Edge Beam in 3.7°. The high quality Osram RGBW Quad LED emits saturated colors and white light of all relevant color temperatures – selectable via RGBW- or CTO-Control. The new micro Fresnel front lens has a homogenly round image and visibility at plan view – ideal for TV applications.
The GLP impression FR1 TM has been designed with the famous baseless design and an extremely and compact body easily fitting into the tightest spaces of set designs from concert and touring stages, television and film, corporate events, set lighting to special events.
, Short product description: Compact Moving Head, powerful 60 W RGBW LED, wide color spectrum, fits any ERCO and its any ERCO and compatible 3-phase tracks
- Long product text (editor):
- Anschlüsse:
- Daten enthalten?: ja , Netzanschluss: EUTRACK 3-circuit power track adapter , Signalverbindung: LumenRadio CRMX DMX
- Aufbau:
- Daten enthalten?: ja , Eigenschaften: baseless Design, Gehäusefarbe: schwarz , Schutzklasse: IP20
- Steuerung & Programmierung:
- Daten enthalten?: ja , Control Modes: Normal, Protokolle: DMX (USITT DMX512-A), LumenRadio CRMX DMX/RDM (standard) , Dimmerkurven: linear, soft , Fan Modes: regulated, high, medium, low , High-Res Channels: Dimmer | Pan | Tilt, Einstellung und Adressierung: beleuchtetes Grafik-LCD, DMX, RDM
- Maße & Gewicht:
- Daten enthalten?: ja , Tiefe (Kopf gerade hoch): 140 mm / 5.5 in, Höhe (mit Bracket): 264 mm / 10.4 in, Gewicht (netto): 4 kg / 8.8 lbs, Breite (Arm zu Arm): 190 mm / 7.5 in
- Dynamische Effekte:
- Daten enthalten?: ja , Farbmischung: RGBW , CTC: variabel 2.500 – 10.000 K , Dimmer / Shutter: 0 – 100%, elektronisch, auswählbare Dimmerkurven, Strobe-Effekte
- Elektrische Spezifikationen:
- Daten enthalten?: ja , Sicherung: T5A 250V 20mm , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , max. Leistung (@ 230 V): 85 W
- Lichtquelle:
- Daten enthalten?: ja , CRI: 80, Anzahl: 1, Lebensdauer: 50.000 h , Leistung: 60 W, TLCI: 80, TM-30-15: 77 / 106, Typ: RGB LED
- Installation:
- Daten enthalten?: ja , Befestigung: 1 Öse für Sicherungskabel , Ausrichtung: beliebig
- Bewegung:
- Daten enthalten?: ja , Pan Angle: 629°, 8 – 16 bit | 360° Pan kontinuierlich, Tilt Angle: 210°, 8 – 16 bit
- Optisches System:
- Daten enthalten?: ja , max. Zoom: 35°, min. Zoom: 3,7°, Zoomverhältnis: 1:10
- Light Source:
- CRI: 80, Count: 1, Lifetime: 50,000 h , Power: 60 W, TLCI: 80, TM-30-15: 77 / 106, Type: RGB LED
- Lieferung:
- Daten enthalten?: ja , einzelnes Gerät: Karton , Tourpack: 6-fach, 12-fach, Flightcase
- Dynamic Effects:
- Color Mixing: RGBW , CTC: variable 2,500 – 10,000 K , Dimmer / Shutter: 0 – 100%, electronical, selectable dimming curves, Strobe effects
- Thermische Spezifikationen:
- Daten enthalten?: ja , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 290 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F
- Connections:
- Power connection: ERCO 3-circuit power track adapter , Signal connection: LumenRadio CRMX DMX
- Construction:
- Construction features: baseless Design, Housing color: Black , Protection Rating: IP20
- Movement:
- Pan Angle: 629°, 8 – 16 bit | 360° continuous Pan, Tilt Angle: 210°, 8 – 16 bit
- Electrical Specifications:
- Fuse: T5A 250V 20mm , Power Input: 100 – 240 VAC / 50 – 60 Hz , max. Power (@ 230 V): 85 W
- Installation:
- Mounting: 1 eyelet for safety cable , Orientation: any
- Shipping:
- single fixture: carton , Tourpack: 6-way, 12-way, Flightcase
- Dimensions & Weight:
- Depth (head straight up): 140 mm / 5.5 in, Height (head straight up): 264 mm / 10.4 in, Weight (netto): 4 kg / 8.8 lbs, Width (across yoke): 190 mm / 7.5 in
- Optical System:
- max. Zoom: 35°, min. Zoom: 3.7°, Zoom ratio: 1:10
- Control & Programming:
- Control Modes: Normal, Control Protocols: DMX (USITT DMX512-A), LumenRadio CRMX DMX/RDM (default) , DMX Channels: Dimmer | Pan | Tilt, Dimming curves: linear, soft , Fan Modes: regulated, high, medium, low , Setting and addressing: backlit graphic LCD, DMX, RDM
- Thermal Specifications:
- Overheating protection: automatic , max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 290 BTU/h
