XDC1 IP Hybrid – Product Data
- Fixture Lib. Files: files/products/xdc1-ip-hybrid-product-data/GLP_XDC1_IP_Hybrid_MA2_Rev20220726-1.zip
- CAD Files: files/products/xdc1-ip-hybrid-product-data/GLP_XDC1_IP_Hybrid_CAD_Rev20220727-2.zipfiles/products/xdc1-ip-hybrid-product-data/GLP_XDC1_IP_Hybrid_Vectorworks_Rev20211028-1.zip
- Info Material Files: files/products/xdc1-ip-hybrid-product-data/GLP_XDC1-IP-Hybrid.pdffiles/products/xdc1-ip-hybrid-product-data/XDC1-IP-Hybrid_Datasheet.pdf
- Header Image:
- Product Picture Gallery:
XDC1
XDC1
XDC1
XDC1 - Product info:
- Long product text (editor):

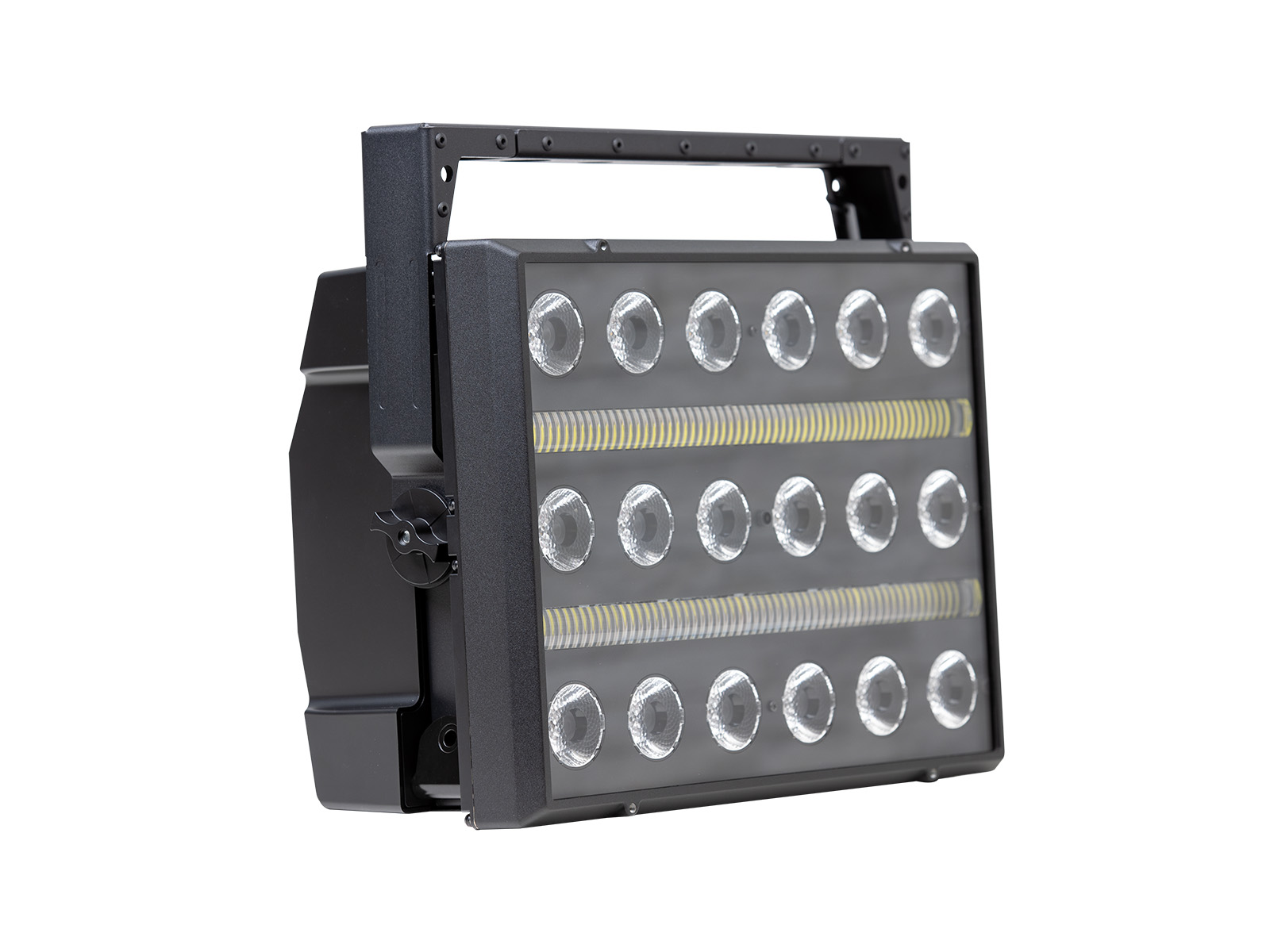

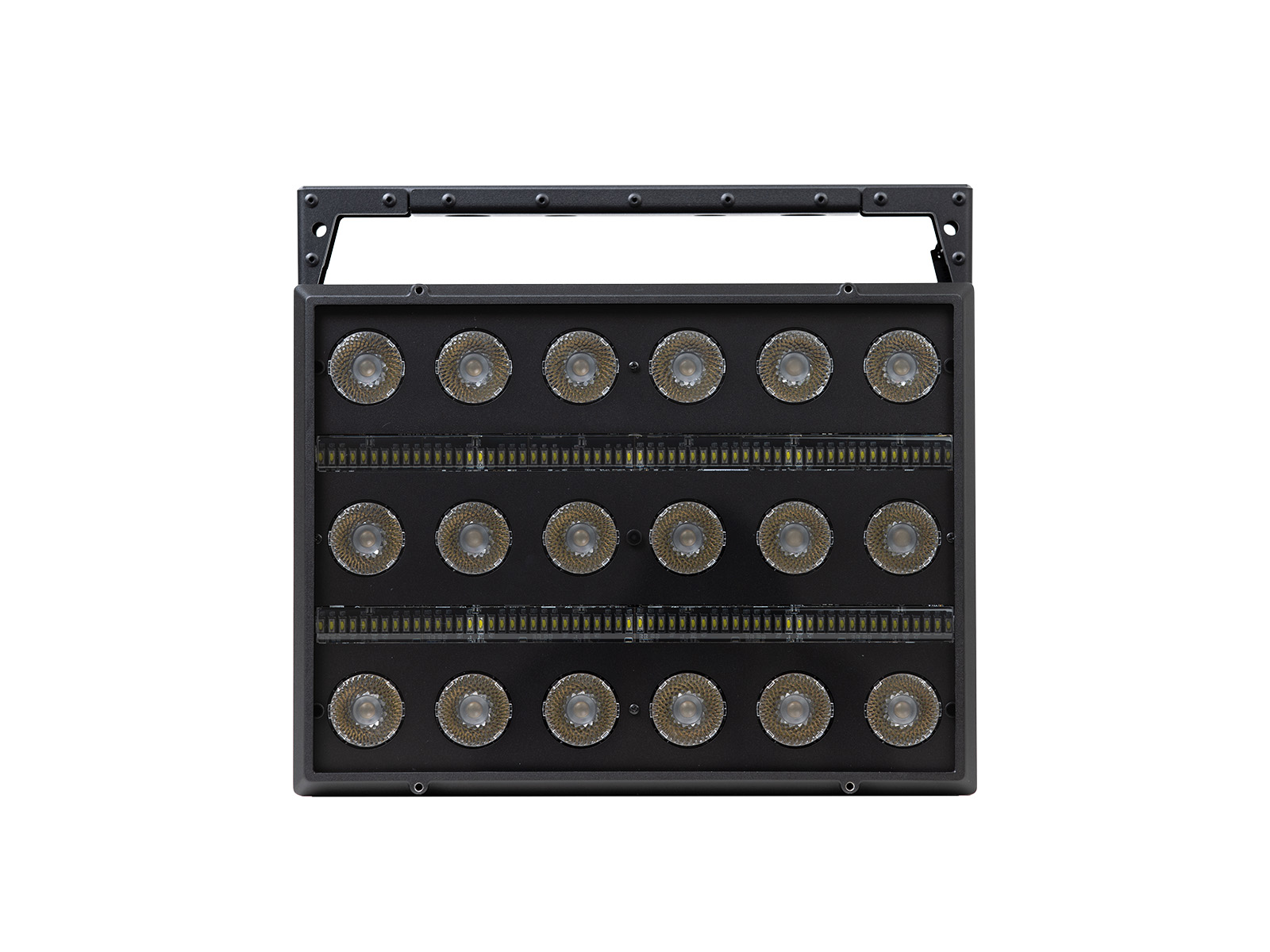

The GLP XDC1 IP Hybrid merges a high-performance strobe with a very powerful wash light, offering superior colour quality—all packaged in a weatherproof IP65 housing. GLP thus meets the growing demand for powerful effect spotlights for large outdoor events that also offer very high colour quality and a wide colour spectrum.
The XDC1 offers impressive light output and colour rendering quality based on the innovative colour mixing of the X5 (RGB plus the special GLP Lime) in combination with two extremely powerful white strobe lines for all applications that require particularly powerful performance.
Just as with the fixtures in the new impression X5 Series, the XDC1 features GLP's proprietary iQ.Gamut colour algorithm. This ensures optimum light output with excellent colour rendering in any colour temperature. A total of 18 wash LEDs, with 40 W light output each, are available in three rows of six pixels each. The particularly narrow 10° optic ensures impressive mid-air effects, especially for applications at very long distances. The proven, extended colour functions, such as a referenced colour wheel, colour temperature control, colour quality control with desaturation, magenta/green shift etc. are of course also available in the XDC1. Thanks to the new tungsten channel, the weatherproof hybrid spotlight can also be used as a powerful audience blinder.
The two high-performance strobe lines of the XDC1 offer up to 1,100 W of strobe power, sufficient to illuminate entire stadiums and arenas. The wide beam pattern of the strobe lines ensures maximum impact and the diffuse luminous flux so important for strobes.
For even more dynamic impact, all 18 wash LEDs can be controlled individually in a second layer level. Here, depending on the mode selected, a wide range of static or dynamic pattern effects can be accessed. Alternatively, the pixels can be recorded with a media server via pixel mapping. These effects can be further enhanced by including the two strobe lines, each segmented into six zones. The combination of pixel control of wash LEDs and strobe lines gives designers maximum creative scope.
Four integrated folding eyelets allow several units to be aligned vertically or horizontally. This allows the design of horizontal or vertical lines, which can be used to create gigantic light objects, e.g. for large events and festivals. The classification according to protection class IP65 makes the use of the XDC1 completely weather-independent, and renders visually unattractive weather protection devices of all kinds superfluous.
For particularly easy installation, each unit is equipped with PowerCon True1 In and Out, DMX In and Out as well as two fail-safe EtherCon ports for ArtNet or sACN. The integrated NFC sensor with iQ.Mesh Module allows for particularly user-friendly configuration via the new GLP iQ.Service app.
As an optional accessory, a stand is offered that can be conveniently attached to the bracket using the Camlock quick-release fastener. This allows the XDC1 to be quickly placed on the floor and aligned.
The optionally available filter frame can be mounted without tools to adjust the optical beam angle. A selection of filter discs for six wash pixels each can be used to perfectly adjust the optical impression to individual needs. The light emission surfaces of the two strobe lines are not touched by the filter frame.
, Short product description: Extremely powerful Strobe, 10° Wash ideal for long distances
- Long product text (editor):
- Zulassungen & Klassifizierungen:
- Daten enthalten?: ja , Risk Group EN 62471: Risk Group 2
- Anschlüsse:
- Daten enthalten?: ja , Netzanschluss: Neutrik powerCON TRUE1 In/Out , Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
- Aufbau:
- Daten enthalten?: ja , Eigenschaften: Alignment System | Gewinde für externes Zubehör | kippbares Bracelet | gleichbleibender vertikaler Pixel Pitch (Wash), Gehäusefarbe: schwarz , Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech , Schutzklasse: IP65
- Steuerung & Programmierung:
- Daten enthalten?: ja , Control Modes: 7, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh , DMX Channels: M1: 21 | M2: 50 | M3: 58 | M4: 113 | M5: 80 | M6: 92 | M7: 53, Dimmerkurven: logarithmic, soft, S-Curve , Fan Modes: regulated, high, medium, low, minimum , High-Res Channels: Dimmer | Colormix, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | FPO (Flexible Protocol Option) | SW Fixture2Fixture Push, Power Modes: Dynamic, Max Strobe, Max Wash, Balanced , Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, internes Web-Interface, DMX, RDM, iQ.Service App , Geräte-Update: DMX Link via Dprog, internes Web-Interface, GLP iQ.Mesh, Fixture2Fixture Push , Subfixture Mode: normal, independent , Weißpunkte: Wash: Standard: 6.500 K | optional | 8.000 K | 5.600 K | 4.200 K | 3.200 K
- Maße & Gewicht:
- Daten enthalten?: ja , Tiefe: 206,3 mm / 8.12 in, Höhe: 300 mm / 11.8 in, Gewicht (netto): 22,5 kg / 49.6 lbs, Breite (Arm zu Arm): 400 mm / 15.75 in
- Dynamische Effekte:
- Daten enthalten?: ja , Farbmischung: RGB, RGBL, x;y , Color Mix Priority: verschiedene Einstellungen für Layer Priority , Farbrad: virtuell, 64 LEE referenzierte Farben, Regenbogen, CQC: High Output (HO), High Quality (HQ), Desaturation , CTC: variabel 2.500 – 10.000 K , Dimmer / Shutter: 0 – 100%, 16 bit , Flash Duration: normal | percentage, Flash Rate: Strobe | kontinuierlich offen | verschiedene Intensity Effects, Magenta/Grün-Korrektur: vorhanden , Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten
- Elektrische Spezifikationen:
- Daten enthalten?: ja , Sicherung: T16A 250V 6x32mm , Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz , Netzteil: Schaltnetzteil , max. Leistung (@ 230 V): 1.100 W, max. Anzahl Geräte auf einer Stromleitung: 1 bei 100 – 120 V, 60 Hz | 3 bei 200 – 240 V, 50 Hz
- Lichtquelle:
- Daten enthalten?: ja , Anzahl: 120x White | 18x RGBL, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten , LED Refresh Rate: Optimal (Default) | High 1 | High 2 | Max, Lebensdauer: 50.000 h , TLCI: Wash: 6.500 K: 90 | 3.200 K: 75, TM-30-15: Wash: 6.500 K: 87 / 105 | 3.200 K: 85 / 110, Typ: White Flash LED | RGBL Wash LED
- Installation:
- Daten enthalten?: ja , Standort: indoor, outdoor , Befestigung: 1 Paar 1/4-Drehverschlüsse, Ösen für Sicherungskabel, 4 Ösen für hängende Installation, 3x 13 mm Loch für Rigging Clamp , Ausrichtung: beliebig
- Optisches System:
- Daten enthalten?: ja , max. beam angle: 10° (Wash) | 140°/45° (Strobe), Licht-Output: bis zu 85.100 lm
- Light Source:
- Count: 120x White | 18x RGBL, Duv: perfect white point matches with low Duv values , LED Refresh Rate: Optimal (Default) | High 1 | High 2 | Max, Lifetime: 50,000 h , TLCI: Wash: 6,500 K: 90 | 3,200 K: 75, TM-30-15: Wash: 6,500 K: 87 / 105 | 3,200 K: 85 / 110, Type: White Flash LED | RGBL Wash LED
- Dynamic Effects:
- Color Mixing: RGB, RGBL, x;y , Color Mix Priority: different Layer Priority settings , Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation , CTC: variable 2,500 – 10,000 K , Dimmer / Shutter: 0 – 100%, 16 bit , Flash Duration: normal | percentage, Flash Rate: Strobe | continuous open | different Intensity Effects, iQ.Gamut: Full, Rec.709, Rec.2020, DCI P3.65 , Magenta/Green-Correction: Yes , Pattern Effects: 50 dynamic pattern macros with special effects , Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix
- Thermische Spezifikationen:
- Daten enthalten?: ja , Kühlung: Kombination aus Konvektions- und Zwangskühlung , Überhitzungsschutz: automatisch , Gesamtwärmeabgabe: 3.760 BTU/hr
- Connections:
- Power connection: Neutrik powerCON TRUE1 In/Out , Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out (failsafe)
- Construction:
- Construction features: Alignment System | threads for external accessory | tiltable bracelet | same vertical Pixel Pitch (Wash), Housing color: Black , Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates , Protection Rating: IP65
- Electrical Specifications:
- Fuse: T16A 250V 6x32mm , Power Input: 100 – 240 VAC / 50 – 60 Hz , Power supply unit: auto-ranging electronic switch-mode , max. Power (@ 230 V): 1,100 W, max. number of products per current line: 1 at 100 – 120 V, 60 Hz | 3 at 200 – 240 V, 50 Hz
- Installation:
- Location: Indoor, Outdoor , Mounting: 1 pair of 1/4-turn locks, eyelets for safety cable, 4 eyelets for hanging installation, 3x 13 mm hole for Rigging Clamp , Orientation: any
- Dimensions & Weight:
- Depth: 206.3 mm / 8.12 in, Height: 300 mm / 11.8 in, Weight (netto): 22.5 kg / 49.6 lbs, Width (across yoke): 400 mm / 15.75 in
- Optical System:
- max. beam angle: 10° (Wash) | 140°/45° (Strobe), Total Output: up to 85,100 lm
- Control & Programming:
- Control Modes: 7, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh , DMX Channels: M1: 21 | M2: 50 | M3: 58 | M4: 113 | M5: 80 | M6: 92 | M7: 53, Dimming curves: logarithmic, soft, S-Curve , Fan Modes: regulated, high, medium, low, minimum , High-Res Channels: Dimmer | Colormix, Other control options: Art-Net/sACN Node | Data Conversion | FPO (Flexible Protocol Option) | SW Fixture2Fixture Push, Power Modes: Dynamic, Max Strobe, Max Wash, Balanced , Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, internal web interface, DMX, RDM, iQ.Service App , Software update: DMX Link via Dprog, internal web interface, GLP iQ.Mesh, Fixture2Fixture Push , Subfixture Mode: normal, independent , White Points: Wash: Default: 6,500 K | optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
- Thermal Specifications:
- Cooling Type: combined convection and forced air , Overheating protection: automatic , Total heat dissipation: 3,760 BTU/hr
- Approvals & Classifications:
- Risk Group EN 62471: Risk Group 2
